Side Panel, Servicing

Side Panel, Servicing

Removing and installing window sill (upper section)
- Remove flap positioning module.

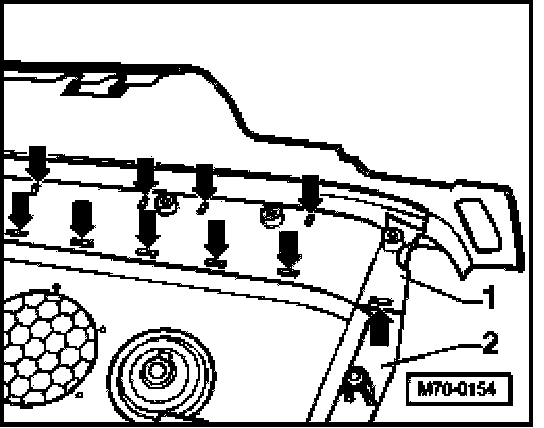

- Remove window sill (upper section) -1- securing points -arrows- with a sander/grinder and Remove of lower section -2-. Old window sill (upper section) cannot be reused.

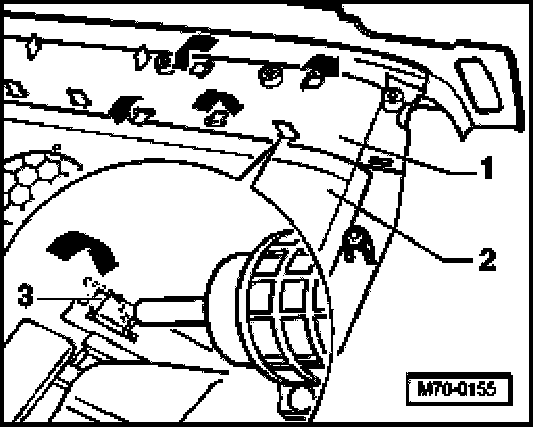

- Position new window sill (upper section) -1- (after painting) on lower section -2-, then heat securing lugs -3- one after other using hot air blower from VAS 1978 and bend lugs over. Bend lugs upward and downward alternately or left and right as applicable.
