Side Panel Trim - Power Convertible Top With Large Flap Base and Flap Servomotor, Assembly Overview

Side Panel Trim - Power Convertible Top With Large Flap Base and Flap Servomotor, Assembly Overview

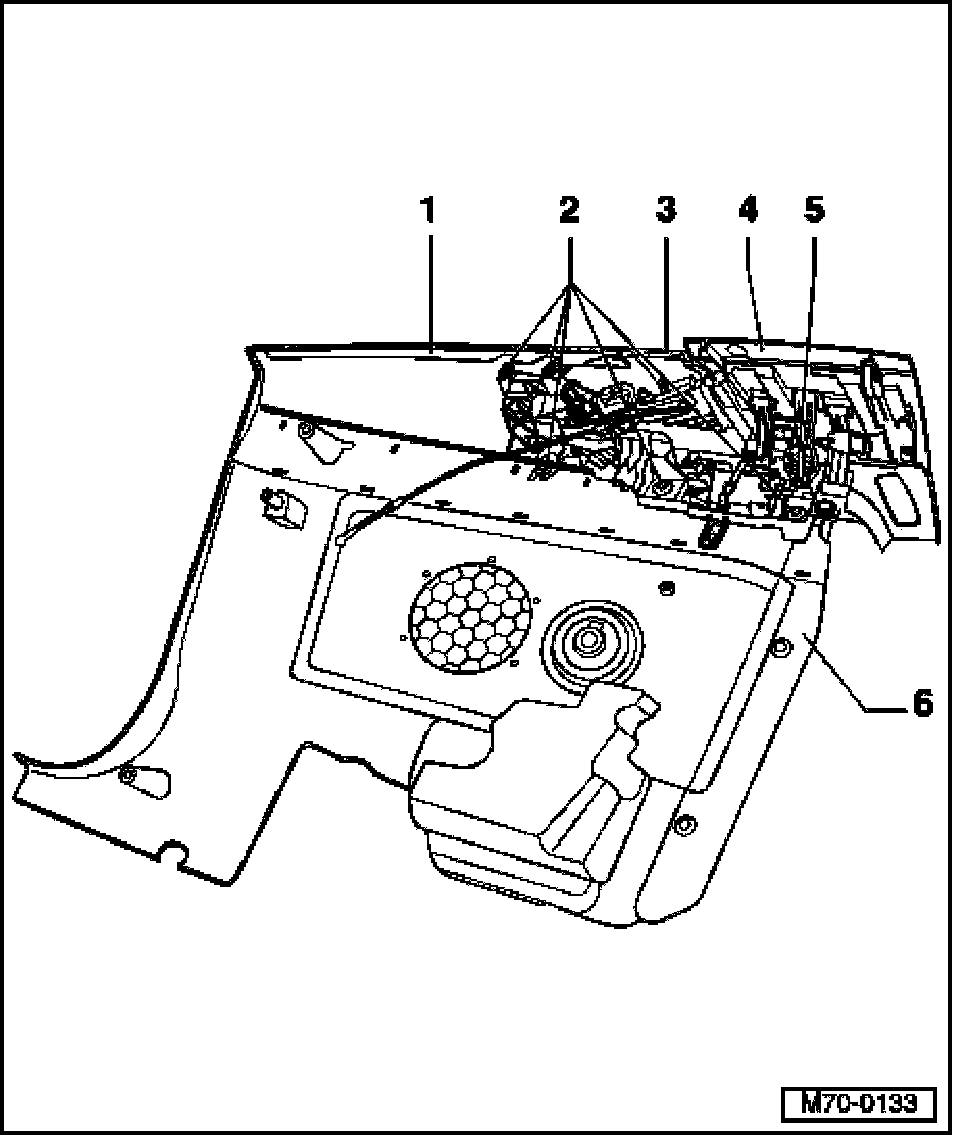

Side panel is supplied as a spare part in two pieces. Window sill (upper section) -1- must be painted in color of vehicle and then joined to lower section -6-.

- For manual convertible top and power convertible top without large flap base and flap servomotor.

1. Window sill (upper section)
- Painted in color of vehicle
2. Bolt/screw
- Qty. 5
- 3 Nm
3. Small trim
- Painted in color of vehicle
4. Large trim
- Painted in color of vehicle
5. Flap positioning module
6. Trim
