Large Trim and Small Trim, Removing and Installing

Large Trim and Small Trim, Removing and Installing

Removing large trim
- Remove main frame for flap module.

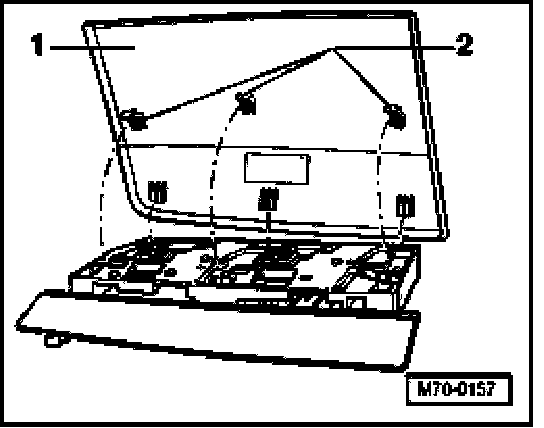

- Press locking tabs -2- back from rear.
- Remove trim -1- out upwards.

Installing
Install in reverse order.

Removing small trim
- Remove main frame for flap module.

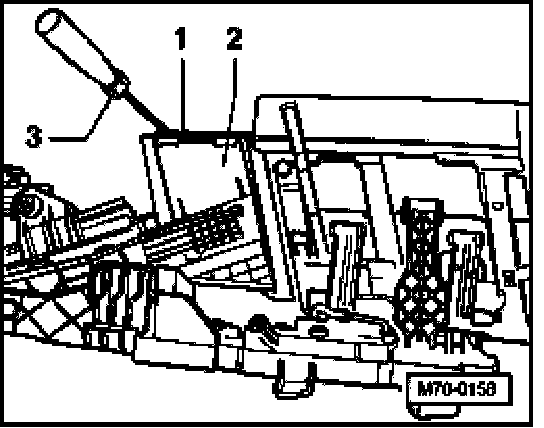

- Lever trim -1- carefully off retainer -2- using a screwdriver -3-.

Installing
Install in reverse order.
