Flap Servomotor, Removing and Installing

Flap Servomotor, Removing and Installing

CAUTION:
- Before Removing or Installing Flap servomotor, first remove Flap module from Side panel.
- There is a risk of damaging painted Side panel parts.

Removing
- Remove push rod.

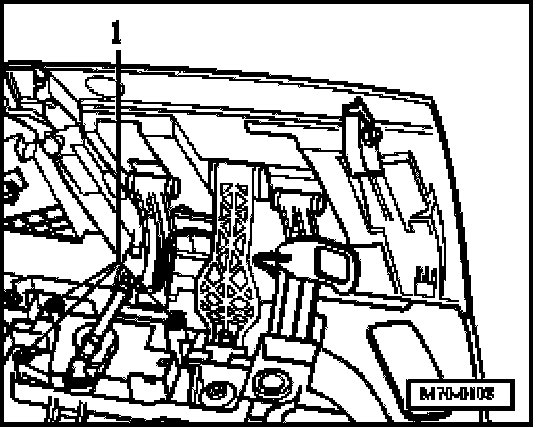

- Remove Torx screws -1-.

Installing
- Install in reverse order of removal.
