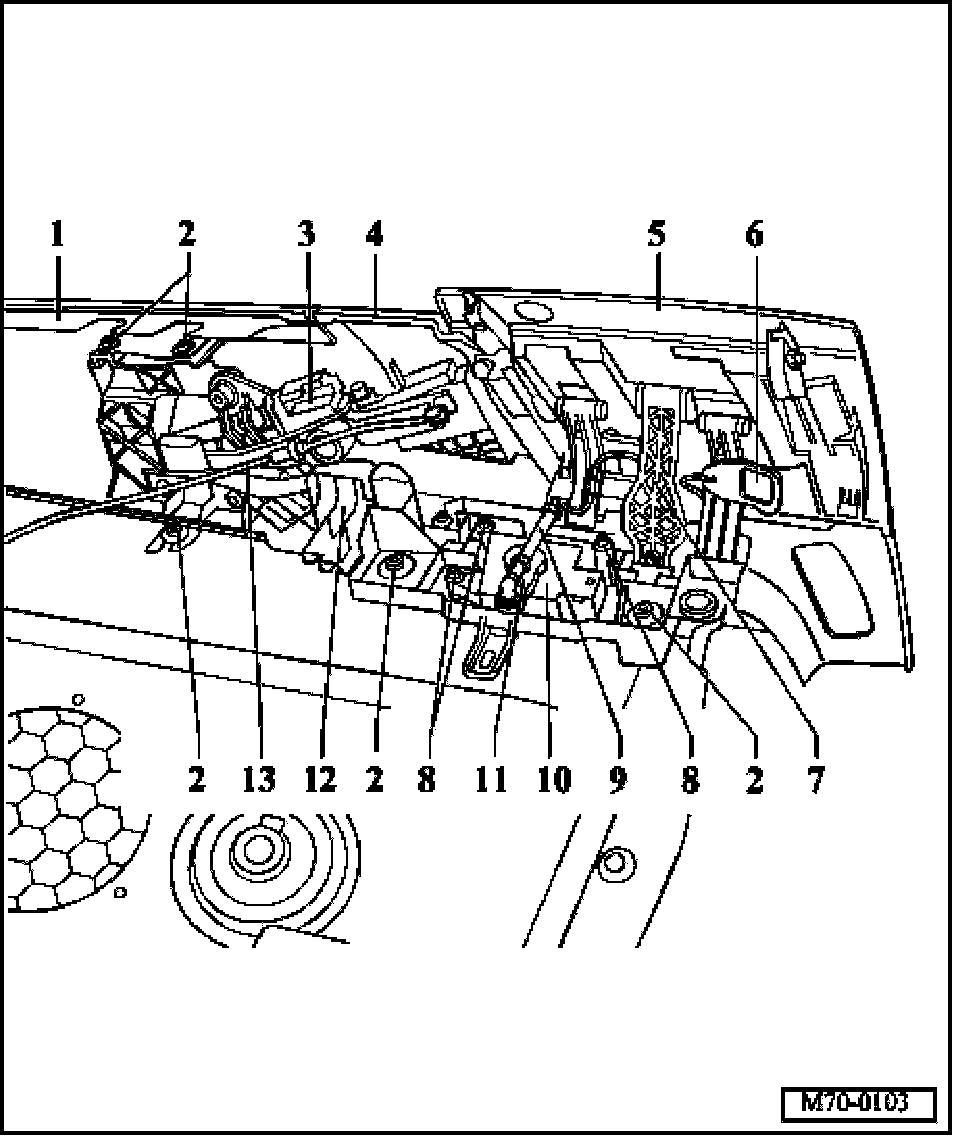

Flap Module, Assembly Overview

Flap Module, Assembly Overview







1. Window sill (upper section)
- Painted in color of vehicle
2. Bolt/screw
- Qty. 5
- 3 Nm
- To remove/install Flap module from side panel unscrew/screw these bolt/screws. Also observe Side panel trim (Convertible) removing and installing.
3. Small flap base
4. Small trim
- Painted in color of vehicle
5. Large trim
- Painted in color of vehicle
6. Emergency release
- Only for power convertible top
7. Large flap base
8. Bolt/screw
- Qty. 3
9. Push rod
10. Flap servomotor
11. Lever
12. Flap module's main frame
- Supports all components listed here.
13. Bowden cable
