Bowden Cable, Removing and Installing

Bowden Cable, Removing And Installing

CAUTION:
- Before Removing or Installing Bowden cable, first remove Flap module from Side panel.
- There is a risk of damaging painted Side panel parts.

Removing







- Remove retaining clip -1- by pulling it upwards.

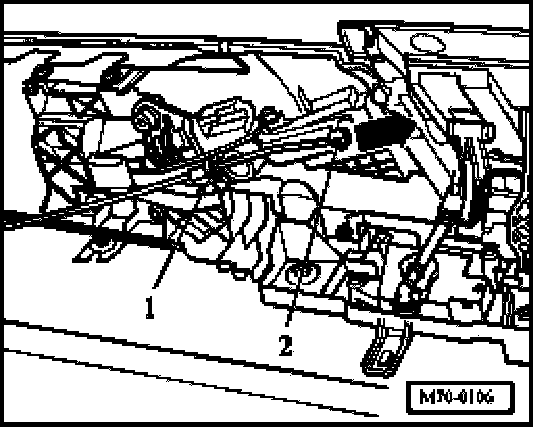

- Remove Bowden cable's cover from small trim base -1-.
- Pull ball end -2- away from retainer in small trim base -arrow-.

Installing
- Install in reverse order of removal.
