C-Pillar Trim, Removing and Installing

C-pillar Trim, Removing And Installing

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing
- Remove side trim.
- Remove belt relay of front and rear seatbelt.
- Remove B-pillar trim.
- Pull off end strip (clipped) downward from roof frame.

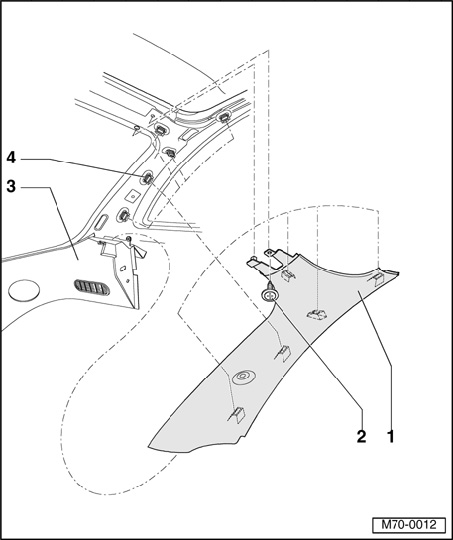

- Remove bolt - 2 -.







- Unclip trim - 1 - at top from C-pillar and disengage from luggage compartment trim - 3 -.

Installing







- Installation is performed in the reverse order of removal.







NOTE: Before installing trim, check clips - 4 - and replace if necessary.
