B-Pillar Trim, Removing and Installing

B-pillar Trim, Removing And Installing

NOTE: Removal and installation is described for left side of vehicle. The same instructions apply for removal and installation for the right-hand side.

Removing
- Remove side trim.
- Remove belt relay of front seatbelt.

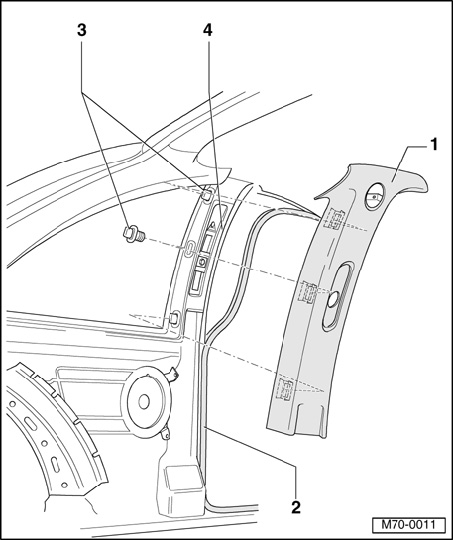

- Remove door inner seal - 2 - from B-pillar - 4 -.







- Remove retaining loop.
- Unclip upper B-pillar trim - 1 - toward rear from B-pillar - 4 -.

Installing







- Installation is performed in the reverse order of removal.







NOTE:
- Before installing trim, check clips - 3 - and replace if necessary.
- After assembling trim, make sure door inner seal is properly fitted.
