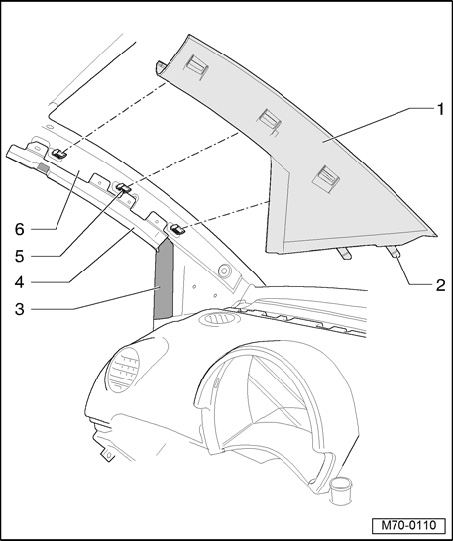

Upper A-Pillar Trim - Assembly Overview

Upper A-pillar Trim - Assembly Overview







1 - A-pillar trim
2 - Retaining pins
3 - Internal door seal
- after assembling trim, make sure seal is properly fitted

4 - Door seal retaining plate
5 - Clip
6 - A-pillar
