Small Trim, Removing and Installing



Small Trim, Removing and Installing

Removing
- Remove main frame for flap module.

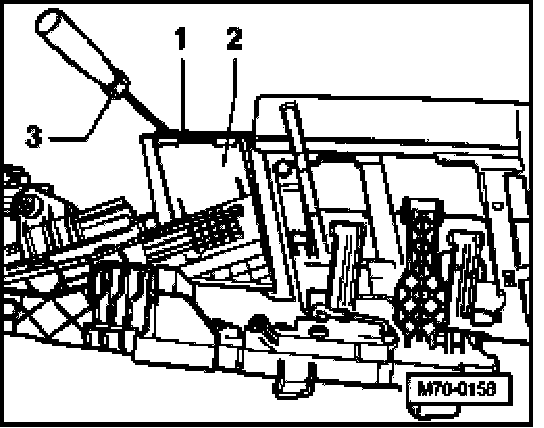

- Lever trim -1- carefully off retainer -2- using a screwdriver -3-.

Installing
Install in reverse order.
