Flap Module, Assembly Overview

Flap Module, Assembly Overview

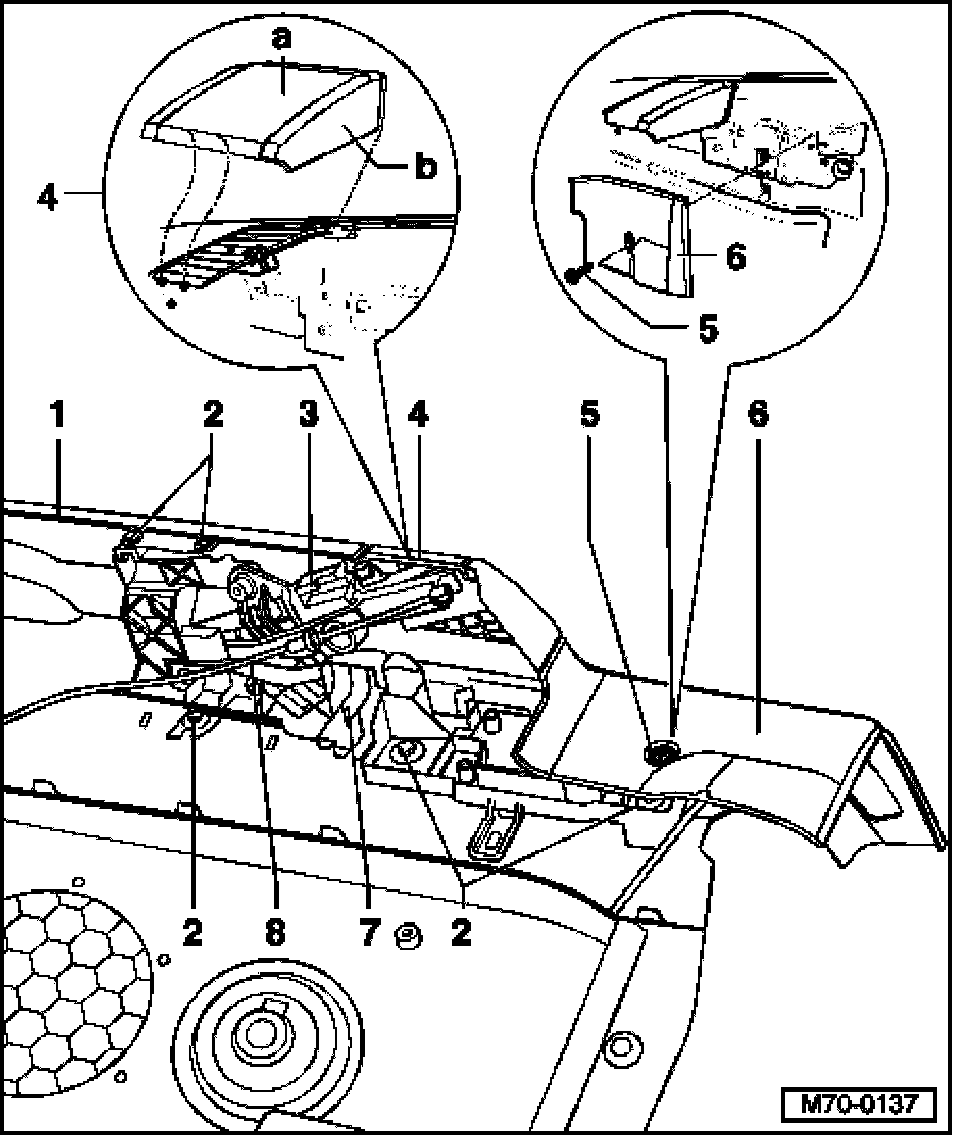

1. Window sill (upper section)
- Painted in color of vehicle
2. Bolt/screw
- Qty. 5
- 3 Nm
- To remove/install Flap module from side panel unscrew/screw these bolt/screws. Also observe Side panel trim (Convertible) removing and installing.
3. Small flap base
4. Small trim
- Trim -a- is supplied as a spare part joined together with trim -b-
- Trim -a- painted in color of vehicle
- Do not paint trim -b-
5. Bolt/Screw
- 1.5 Nm
6. Trim
- Do not paint
7. Flap module's main frame
- Supports all components listed here.
- To remove: first unscrew bolt/screw and remove side trim.
8. Bowden cable

For vehicles with power convertible top without large flap base and flap servomotor from 06.04 to 11.04, flap servomotor is installed in right rear side of luggage compartment, just like a bypass meanwhile convertible top control module is modified to do this function.
