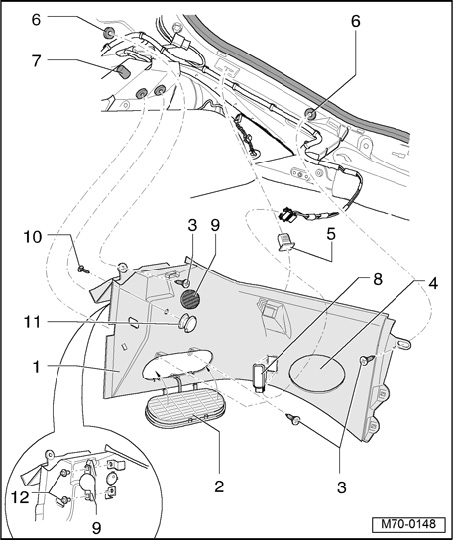

Right Luggage Compartment Side Trim - Assembly Overview

Right Luggage Compartment Side Trim - Assembly Overview







1 - Right luggage compartment side trim
2 - Ventilation grid
3 - Bolt
- 4x

4 - Cover
- Clipped
- Access to tail light

5 - Clip
6 - Expanding nut
7 - Rubber buffer
8 - Interior lighting
9 - Speaker
- Only for vehicles with parking assistance system

10 - Bolt
- Only for vehicles with luggage compartment net

11 - Pin nut
- Only for vehicles with luggage compartment net

12 - Rivet
- 2x
