Center Instrument Panel Switches, Removing and Installing

Switches In Center of Instrument Panel, Removing and Installing

Removing and installing is the same procedure for all switches. Procedure for hazard warning light switch -E3- > 05.03 is described here.

Switch must be pulled out in order to disconnect electrical connector.

Special tools and equipment
Wood or plastic wedge

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Protect instrument panel and adjacent switches with adhesive tape if necessary.

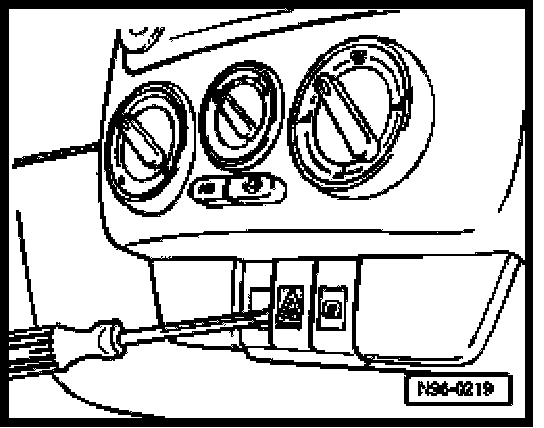

- Press in adjacent switch and carefully pry out switch using flat plastic wedge or screwdriver.
- Release connections and disconnect electrical connection.

Installing
- Connect electrical connection.
- Insert switch into mounting and engage properly.
