Center Console, Removing and Installing

Center Console, Removing And Installing 07.05 -->

NOTE: Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.

Removing
- Switch ignition off.
- Remove armrest.
- Remove boot from center console.
- Remove parking brake lever trim.

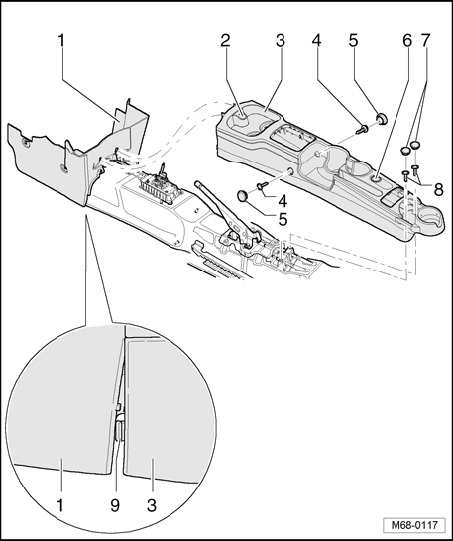

- Using a small screwdriver, pry cover caps - 5 - and - 7 - out of center console - 3 -.







- Remove two bolts - 4 - (1.4 Nm).
- Remove two bolts - 8 - (1.4 Nm).
- Remove center console from tunnel support cover - 1 -.

NOTE: When installing, make sure that catches - 9 - engage on both sides in tunnel support cover - 1 -.

- Slightly lift center console and disconnect wiring harnesses of 12 V power outlets - 2 - and - 6 -.
- Remove center console from vehicle.

Installing
- Installation is performed in the reverse order of removal.
