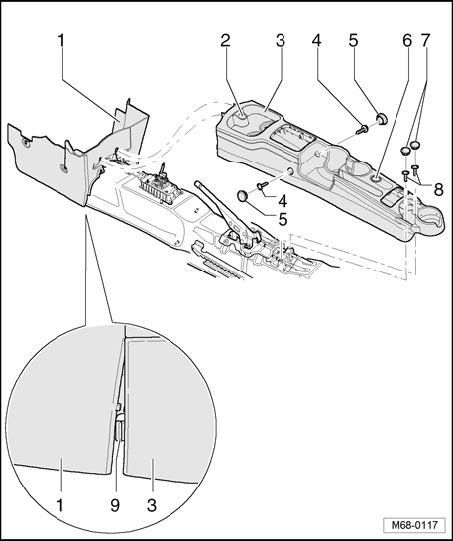

Center Console - Assembly Overview

Center Console - Assembly Overview 07.05 -->







1 - Cover, tunnel support
2 - 12V power outlet, front
3 - Center console
4 - Bolt.
- 2x
- 1.4 Nm

5 - Cover cap.
- 2x

6 - 12 V power outlet, rear
7 - Cover cap.
- 2x

8 - Bolt
- 2x
- 1.4 Nm

9 - Catches
