Lower Rear Lid Trim - Assembly Overview

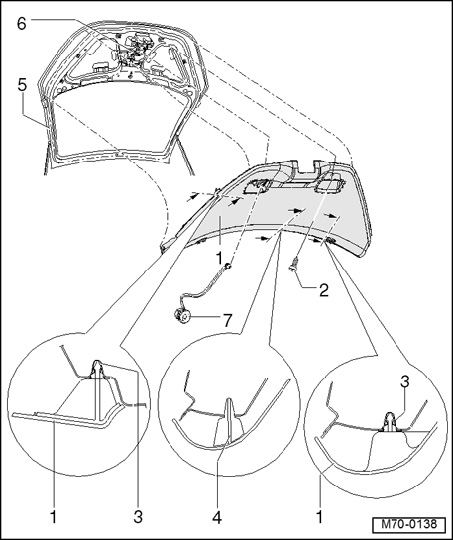

Lower Rear Lid Trim - Assembly Overview 12.04 -->







1 - Lower trim
2 - Bolt
- 1x

3 - Clip
4 - Pins
5 - Rear lid
6 - Lid lock
7 - Rubber button with cable
