Home >> Volkswagen >> 2005 >> New Beetle Convertible (1Y1) L4-2.0L (BEV) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Comfort System (Vehicles With Power Windows) >> Scan Tool Testing >> Measured Value (Data) Block, (Function 08) >> Evaluating Measured Value Blocks >> Display Group 008

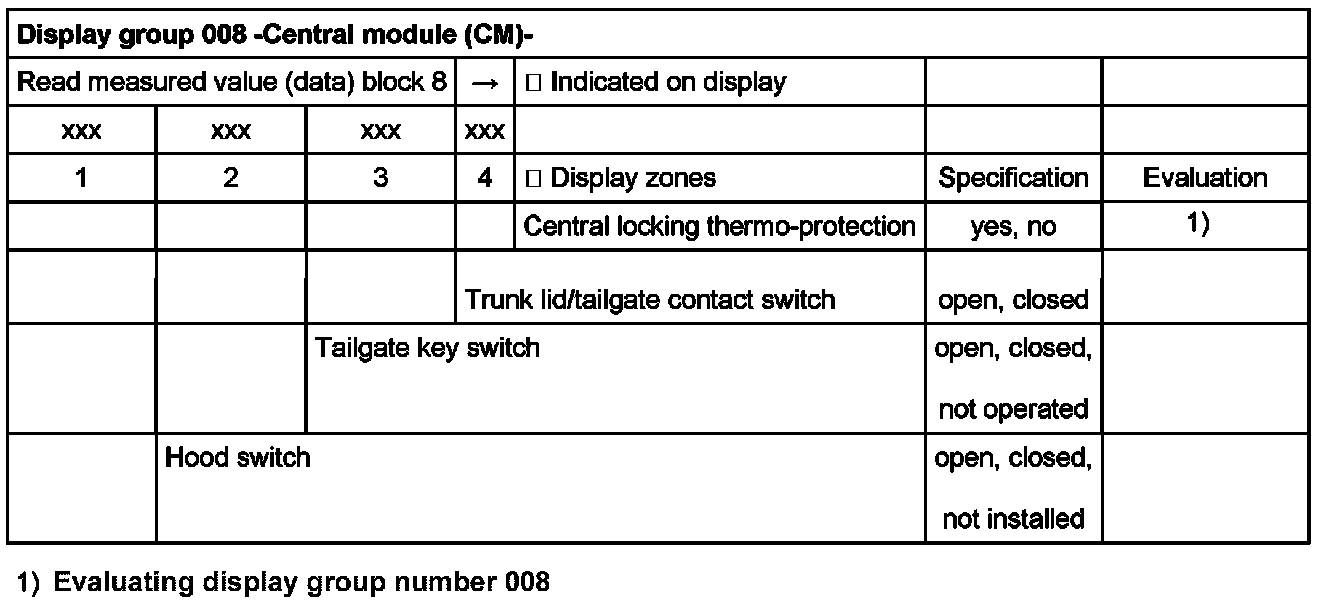

Display Group 008



Display Group 008

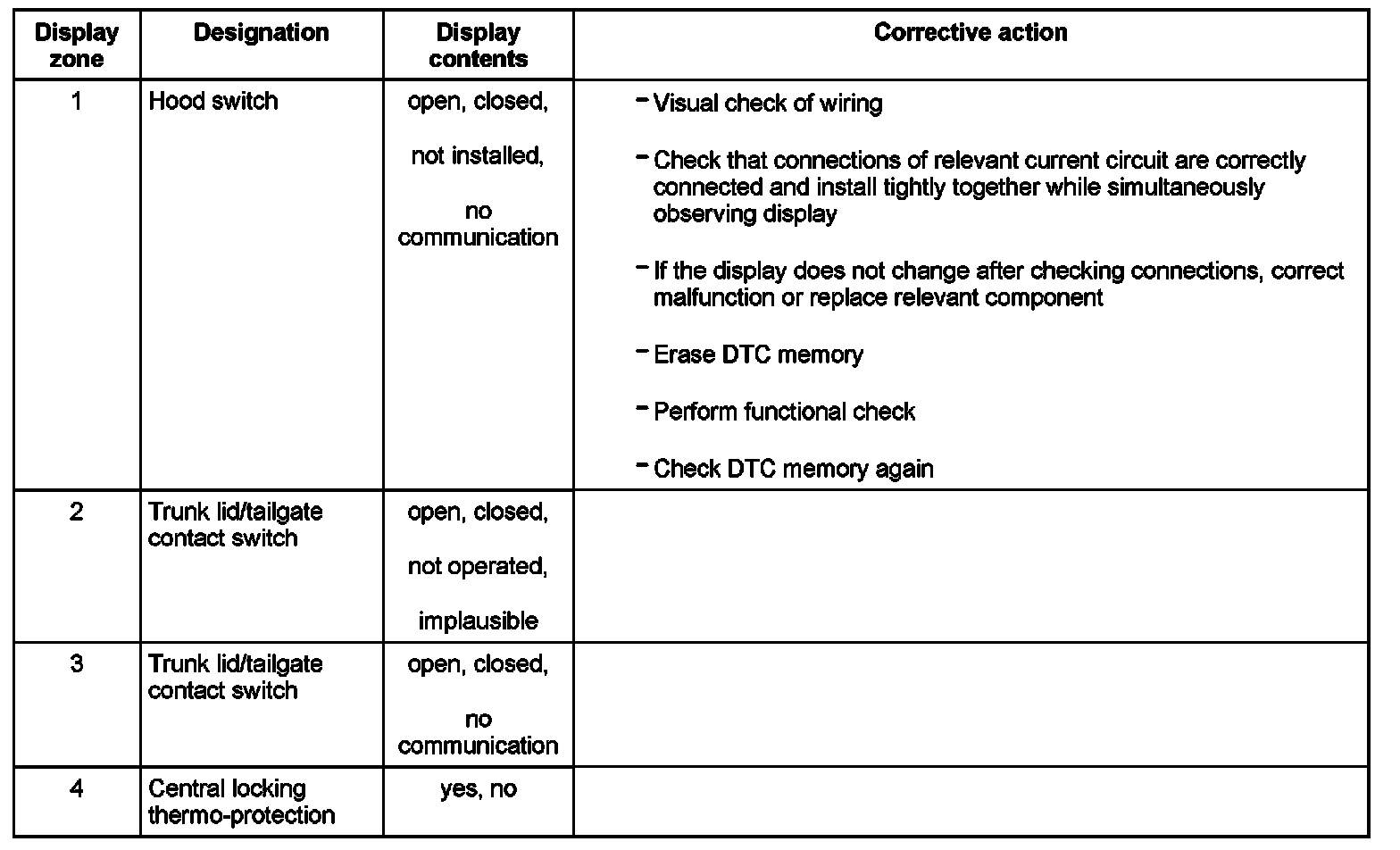

Evaluation For Display Group 008
