Speaker System

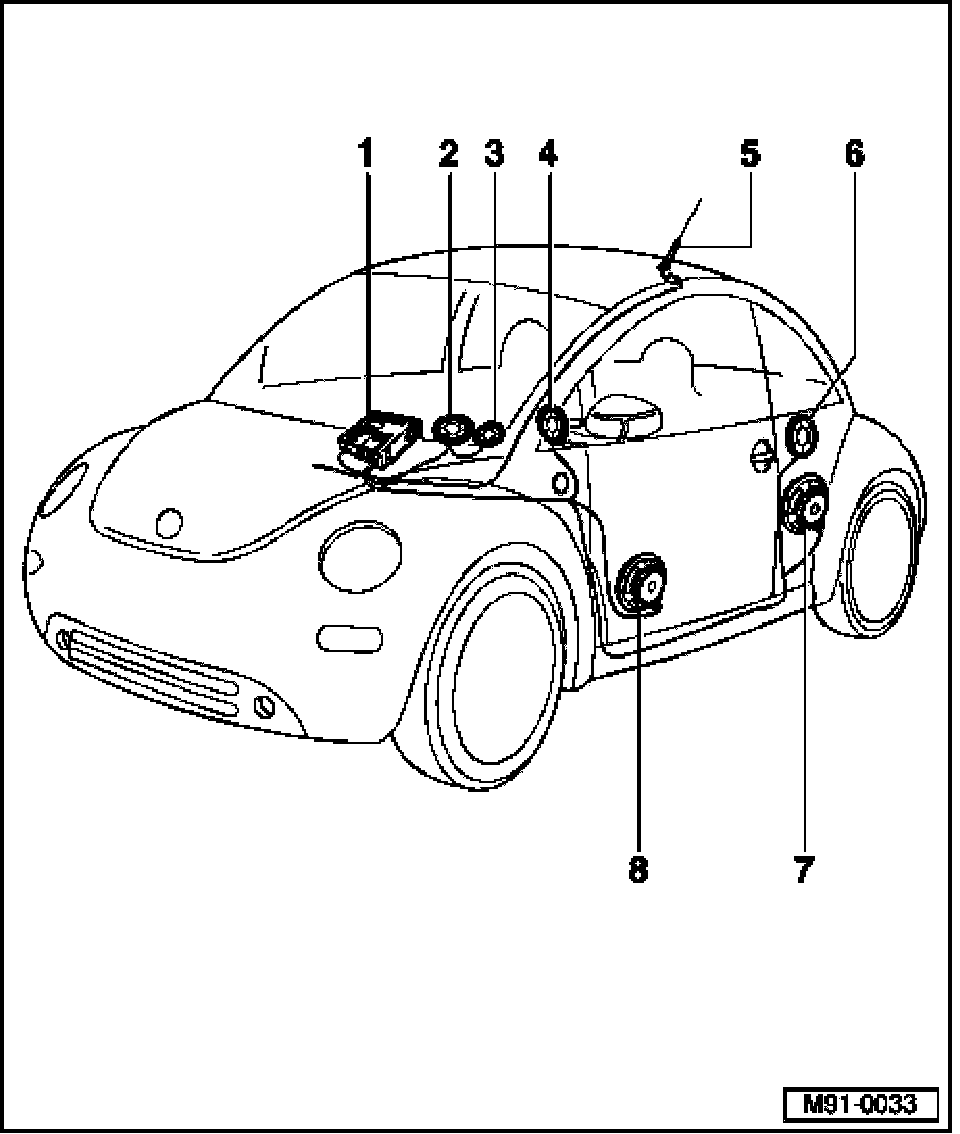

Speaker System - All "Premium" (Incl. Monsoon), Component Overview







NOTE:
- Speaker applications for standard and optional Monsoon systems will vary between Sedan and Convertible.
- Left side speaker layout shown. Right side speaker layout is identical.

1. Radio -R-
2. Front Midrange Speaker -R26- / -R27-
3. Front Treble Speaker -R20- / -R22-
4. Front Treble Speaker -R20- / -R22- (Sedan without Monsoon)
5. Antenna
- Antenna systems
6. Rear Treble Speaker -R14- / -R16-
7. Rear Bass Speaker
8. Front Bass Speaker
