Rear Treble Speaker

Rear Treble Speaker -R14-/-R16-, Removing and Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove rear trim panel
- Disconnect electrical connection.

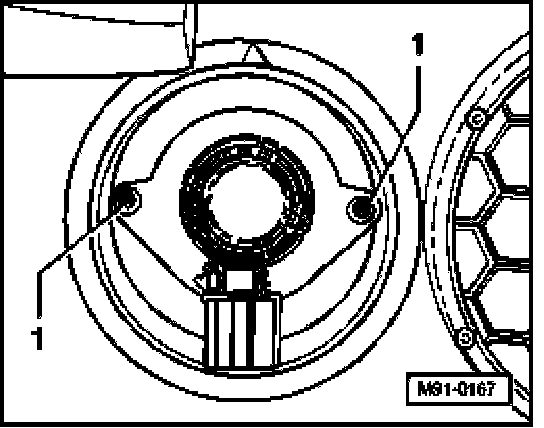

- Remove screws-1-.

Installing
- Install in reverse order of removal.
