Front & Rear Bass Speakers

Front & Rear Bass Speakers -R15-/-R17- & -R21-/-R23-, Removing and Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove door trim panel or rear trim panel as applicable
- Disconnect electrical connection.

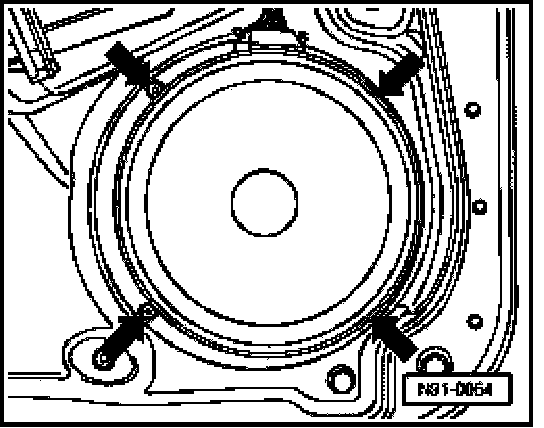

- Carefully drill out rivets -arrows- and remove speaker.

CAUTION:
- To prevent corrosion, make sure that all metal particles from drilling are removed from inside the door.
- If the paint on door frame is damaged during drilling, touch-up immediately.

Installing
- Secure speaker with locally available pop rivets of proper length and diameter.

NOTE: Do not forget rubber insulation ring between door trim and speaker when reinstalling door trim.
