Radio - Sedan "Premium 5.5 (SDARS)", Component Overview

Radio - Sedan "Premium 5.5 (SDARS)", Component Overview

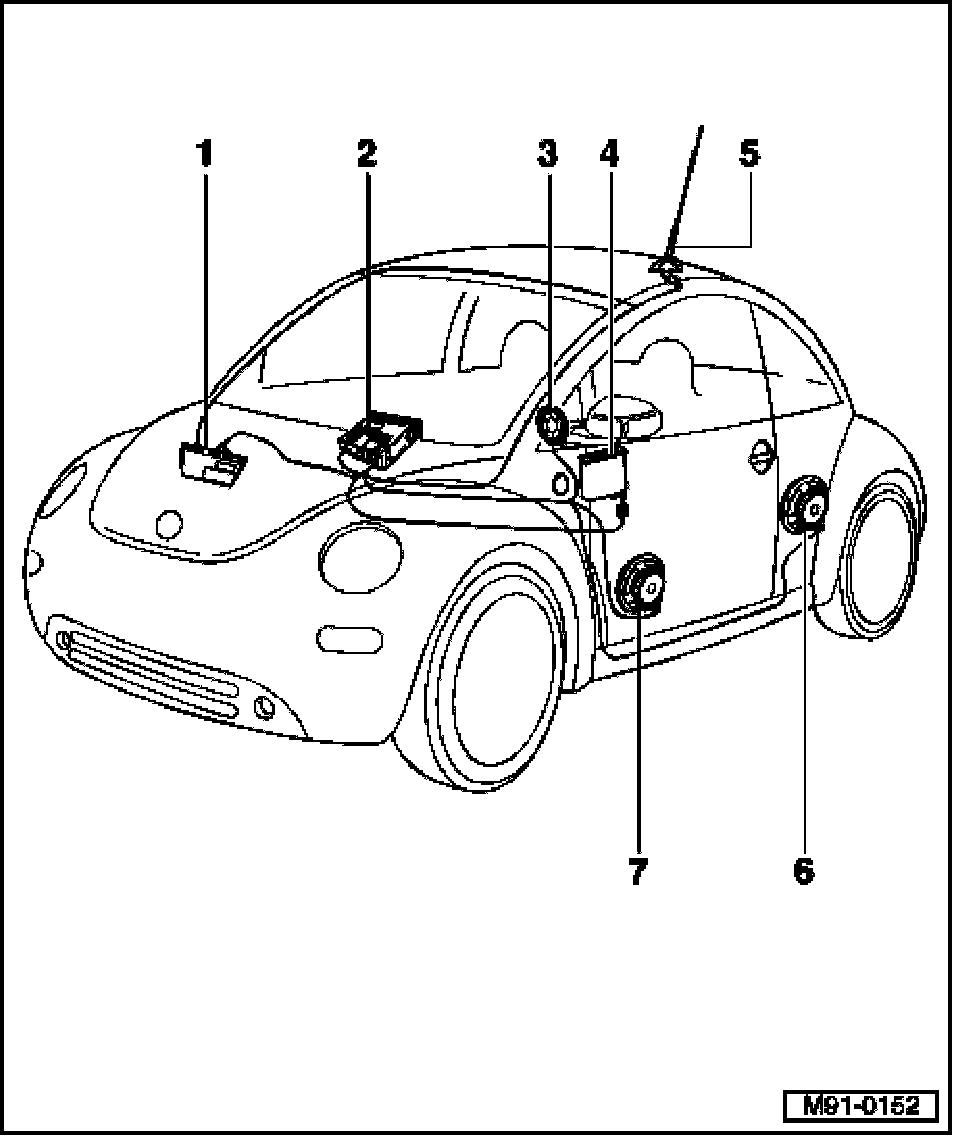

NOTE: Left side speaker layout shown. Right side speaker layout is identical.

1. Satellite Radio -R146-
- Located in front passenger's footwell.
2. Radio -R-
- In center console
3. Front Treble Speaker -R20- / -R22-
- In A-pillar trims
4. CD Changer - R41-
- Optional
- Inside armrest
5. Antenna
6. Rear Bass Speaker -R15- / -R17
- 168 mm
- In rear side panels
7. Front Bass Speaker -R21- / -R23-
- 168 mm
- In doors
