Sedan

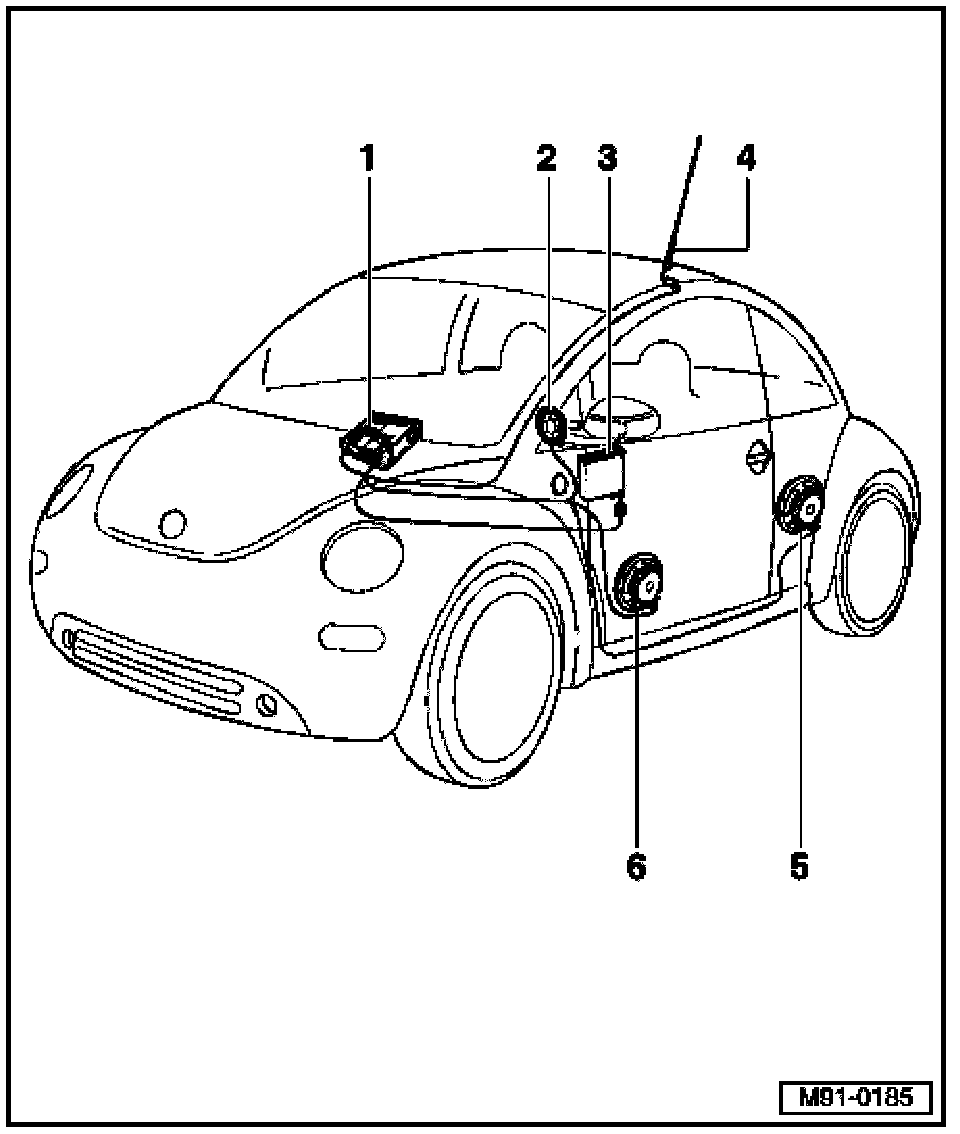

Radio - Sedan "Premium V and Premium 5.5", Component Overview







NOTE: Left side speaker layout shown. Right side speaker layout is identical.

1. Radio -R-
- In center console
2. Front Treble Speaker -R20- / -R22-
- In A-pillar trims
3. CD Changer - R41-
- Optional
- Inside armrest or in luggage compartment (depending on production date)
4. Antenna
5. Rear Bass Speaker -R15- / -R17
- 168 mm
- In rear side panels
6. Front Bass Speaker -R21- / -R23-
- 168 mm
- In doors
