Radio - Convertible "Premium V - Monsoon and Premium 5.5 - Monsoon", Component Overview

Radio - Convertible "Premium V - Monsoon and Premium 5.5 - Monsoon", Component Overview

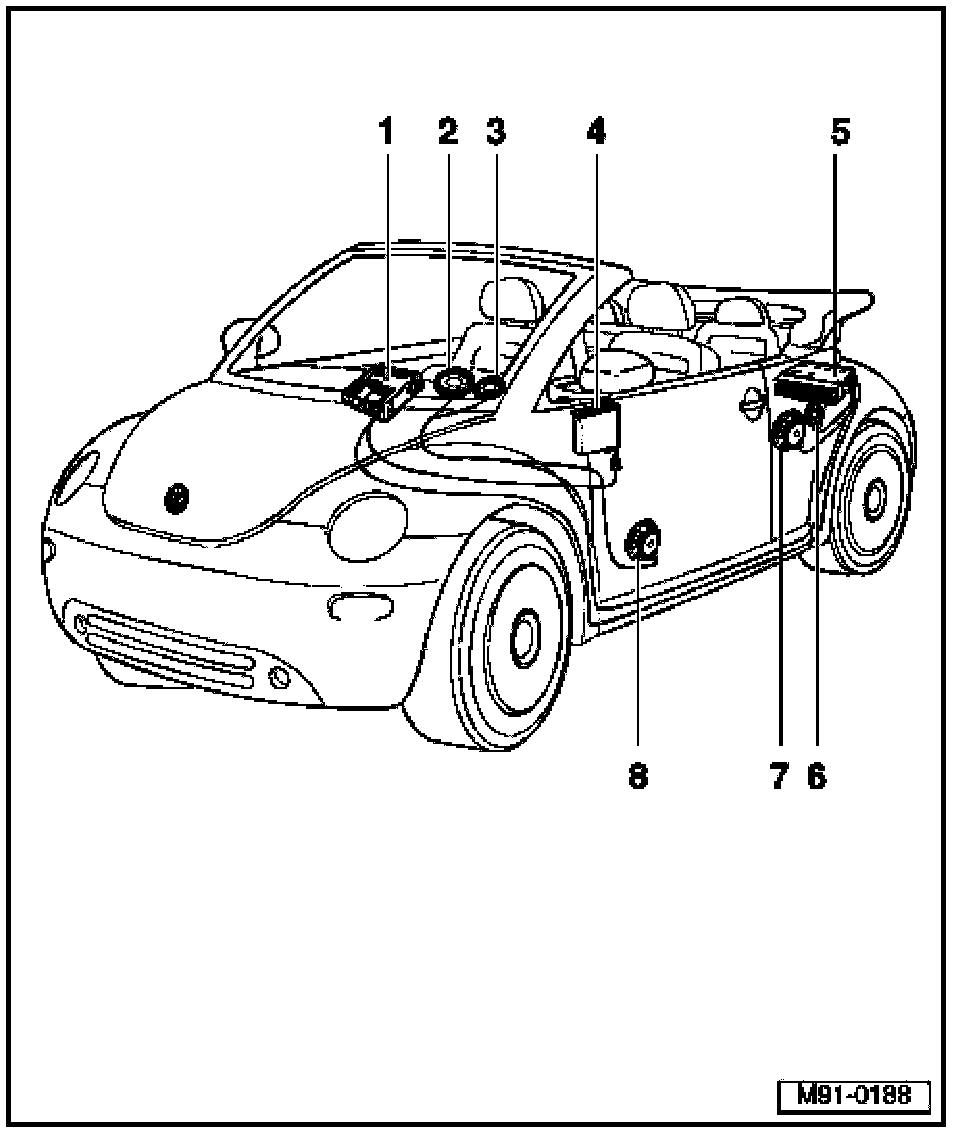

NOTE: Left side speaker layout shown. Right side speaker layout is identical.

1. Radio - R-
- In center console
2. Front Midrange Speaker -R26- / -R27-
- In instrument panel under top covers
3. Front Treble Speaker -R20- / -R22-
- In instrument panel under top covers
4. CD Changer -R41-
- Optional
- Inside armrest or in luggage compartment (depending on production date)
5. Amplifier -R12-
- In luggage compartment
- Powers speakers
6. Rear Treble Speaker -R14- / -R16-
- In rear side panels
7. Rear Bass Speaker -R15- / -R17-
- 168 mm
- In rear side panels
8. Front Bass Speaker -R21- / -R23-
- 220 mm
- In doors
