Radio - Convertible "Premium 5.5 - Monsoon (SDARS)", Component Overview

Radio - Convertible "Premium 5.5 - Monsoon (SDARS)", Component Overview

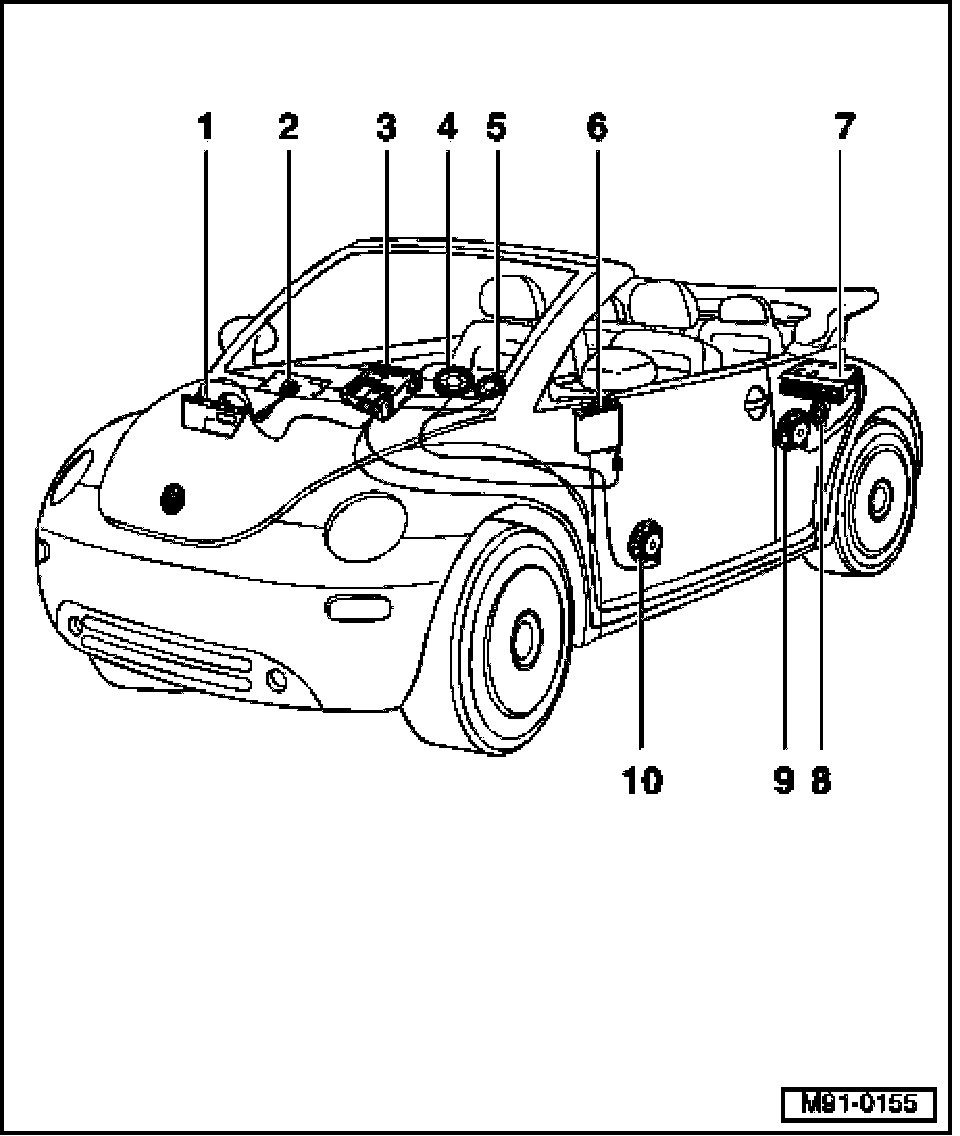

NOTE: Left side speaker layout shown. Right side speaker layout is identical.

1. Satellite Radio -R146-
- Located in front passenger's footwell.
2. Satellite Radio Antenna
- In instrument panel, under center top cover
3. Radio -R-
- In center console
4. Front Midrange Speaker Speaker -R26- / -R27-
- In instrument panel under top covers
5. Front Treble Speaker -R20- / -R22-
- In instrument panel under top covers
6. CD Changer -R41-
- Inside armrest
- Optional
7. Amplifier -R12-
- In luggage compartment
- Powers speakers
8. Rear Treble Speaker -R14- / -R16-
- In rear side panels
9. Rear Bass Speaker -R15- / -R17-
- 168 mm
- In rear side panels
10. Front Bass Speaker -R21- / -R23-
- 220 mm
- In doors
