Amplifier -R12- - Sedan, Removing and Installing

The amplifier is located behind the lock carrier trim (left) in the rear of the luggage compartment.

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.
- Disconnect negative ( - ) battery terminal.
- When disconnecting and reconnecting battery terminals, observe all applicable Notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks as specified.

- Remove lock carrier trim.







- Remove nuts -1-.
- Remove cover for assembly opening -arrow-.

NOTE: The assembly opening can be used to gain access to both multi-pin connectors and pull them off the amplifier.

- Disconnect both electrical connections.
- Slide amplifier up and out from bracket.

Installing
Install in reverse order of removal, noting the following
- Insert lower part of amplifier into bracket guide rail.
- Reconnect electrical connections.
- Install and tighten nuts -1- to 10 Nm (89 in.lb).

Amplifier bracket, removing and installing

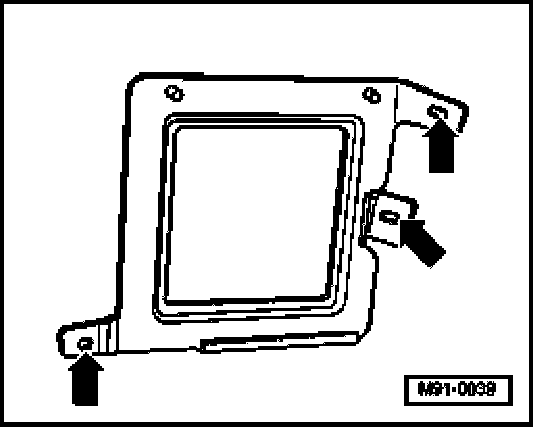

The bracket is secured by 3 nuts to the rear cross panel -arrows-, Tightening torque 10 Nm (89 in.lb).
