Global Positioning System Antenna: Service and Repair

GPS/Telematics Antenna, Removing and Installing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing
- Unclip rear headliner trim and left/right C-pillar trim
- Carefully lower headliner at rear slight in order to access antenna cables etc..

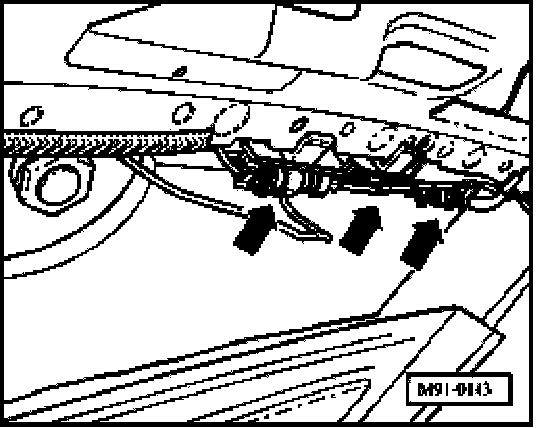

- Unclip cable connections -arrows- from roof and separate connections.

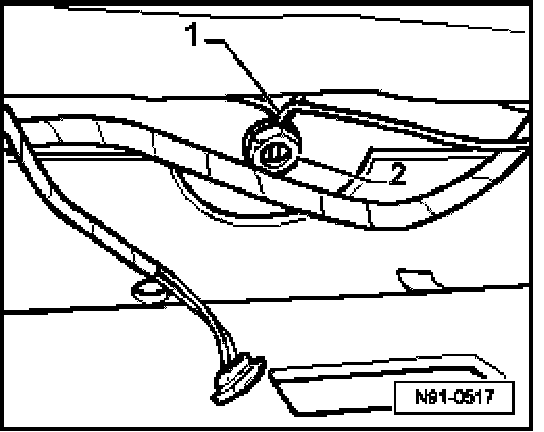

- Remove nut -2- and remove antenna.

Installing
Install in reverse order of removal, noting the following:







- Ensure gasket is properly oriented in relation to relief areas -arrows- on antenna base







- Ensure stress free routing of antenna cables -1- through nut -2-.
- Apply contact grease in area where nut/serrated washer contacts roof sheet metal.
