Batteries For Main Key (Folding) With Radio Frequency Remote Control, Removing and Installing

Batteries For Main Key (Folding) With Radio Frequency Remote Control, Removing and Installing

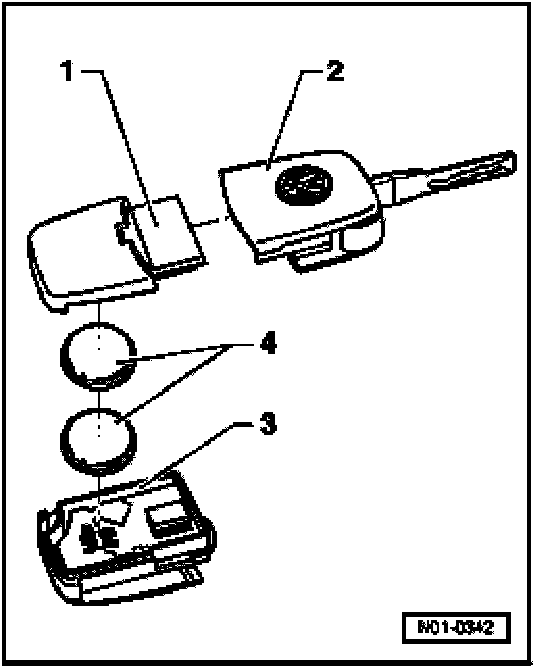

1. Transmitter unit - Upper part (turned-over)
2. Main key with variable code transponder
3. Transmitter unit - lower part
4. Button battery

Removing

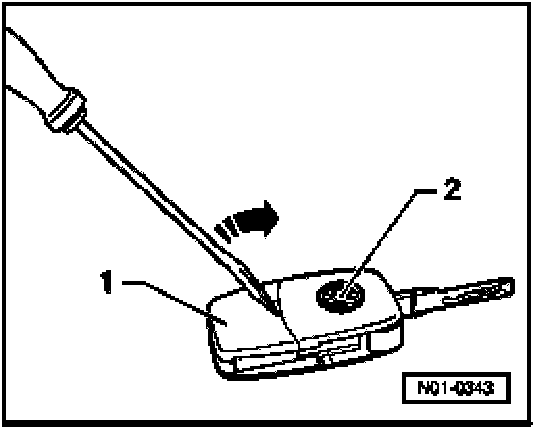

- Insert a screwdriver in the slot between the transmitter unit -1- and the main key -2-.
- Move the screwdriver in direction of arrow and unclip the transmitter unit from the main key.

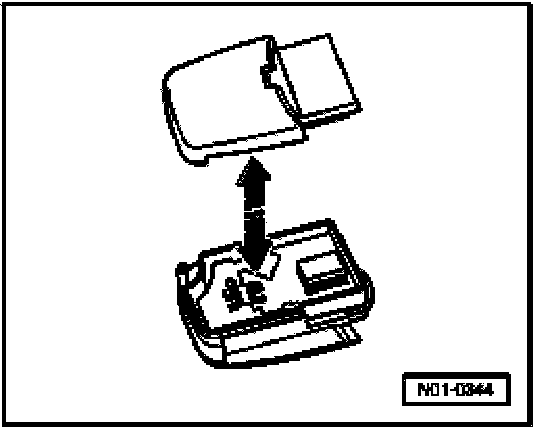

- Press the transmitter unit apart in direction of arrow.

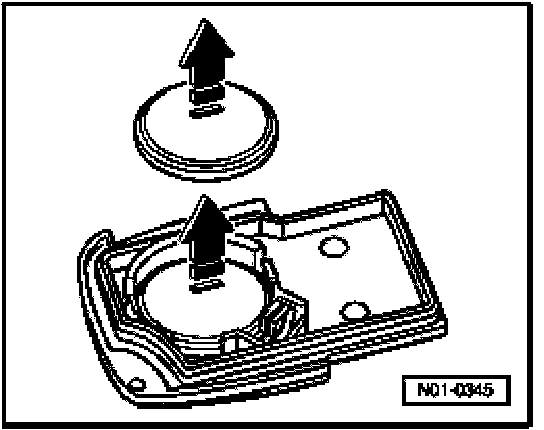

- Unclip batteries from the retainers in direction of arrow using a screwdriver.

Installing
Note the polarity and correct position when installing the batteries.

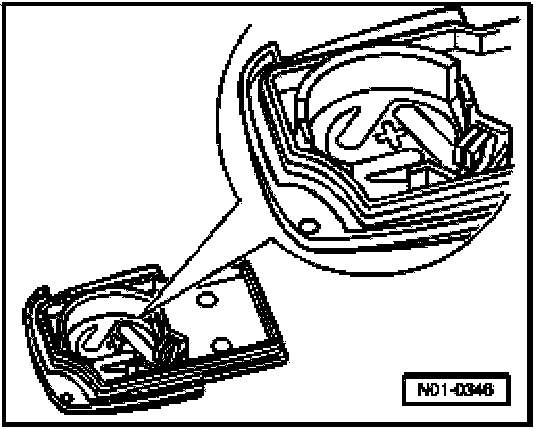

- Place the battery with the positive terminal downward into the sender unit (positive terminal is marked on housing).
- Engage battery in transmitter body by pressing down lightly.
- Install cover on transmitter body (do not damage seal).
- Then engage the transmitter unit with the main key.
