Satellite Radio System Antenna - Sedan, Assembly

Satellite Radio System Antenna - Sedan, Assembly

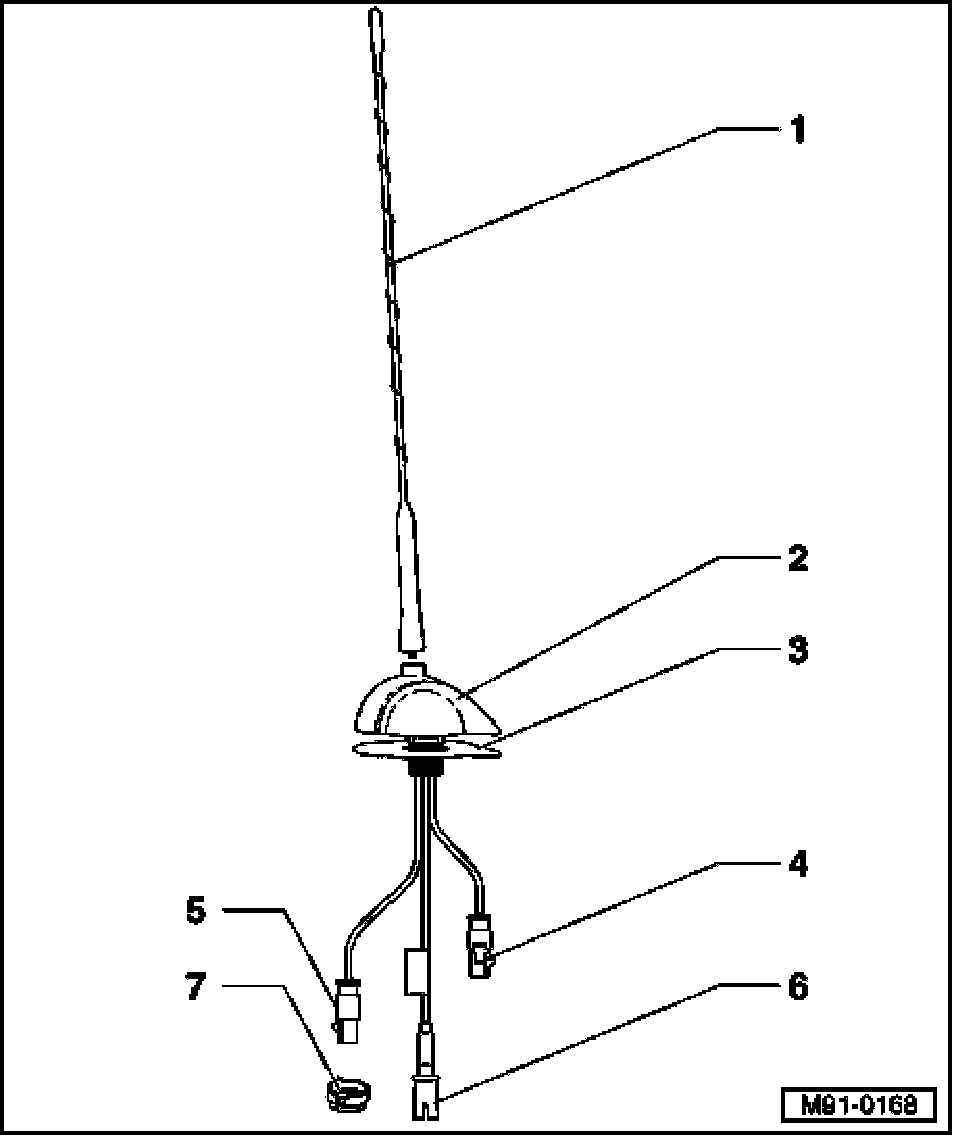

1. Antenna mast
2. Antenna base
- The standard radio antenna amplifier and Satellite Radio antenna are integrated into the antenna base.
3. Foam gasket
4. Antenna connection
- SAT - to Satellite Radio -R146-
- Small cable with black connector
5. Antenna connection
- Terr - to Satellite Radio -R146-
- Mid size cable with beige connector
6. Antenna connection
- AM/FM - to Radio -R-
- Large cable with black plug
7. Hex nut
- M14
- With integrated serrated washer
- Apply contact grease to the inside of the roof in area of serrated washer
- Tightening torque: 7.5 Nm
