Radio System Antenna -Sedan, Assembly

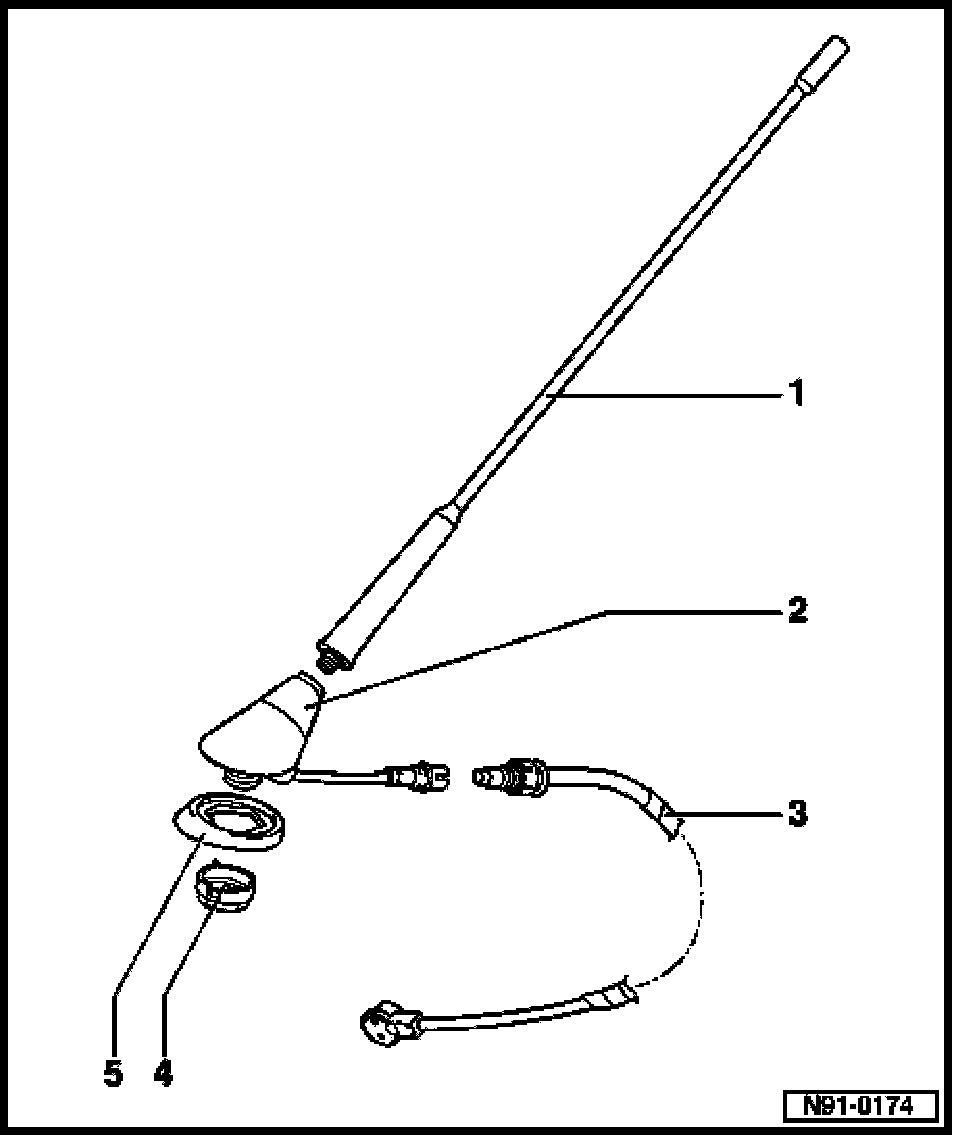

Radio System Antenna -Sedan, Assembly







1. Antenna rod
2. Antenna base
- The amplifier coil is located in the antenna base
- Removing and installing: lower molded headlining at rear
3. Antenna cable
- Routing: From roof antenna to front of center console
4. Hex nut
- M14
- With integrated serrated washer
- Apply contact grease to the inside of the roof in area of serrated washer
- Tightening torque: 7.5 Nm
5. Gasket
