Satellite Radio System Antenna - Convertible, Assembly

Satellite Radio System Antenna - Convertible, Assembly

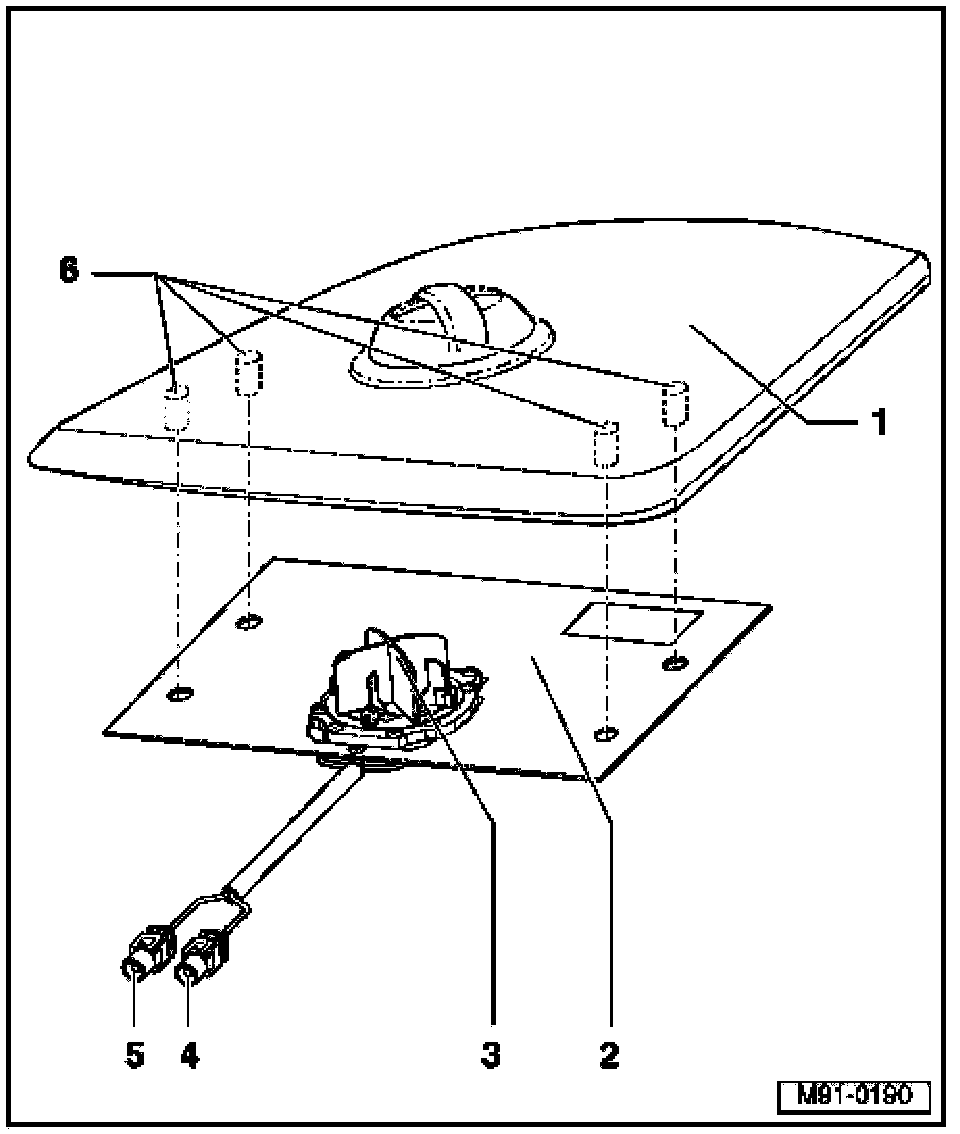

The antenna assembly (mounting/ ground plate -2-, antenna body -3- and connections) are permanently fixed to center instrument panel cover -1-. To replace it:

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove center instrument panel cover
- Disconnect antenna connections.
- Install in reverse order of removal, noting connector application.

1. Cover
2. Mounting/ground plate
- Fixed to instrument panel with plastic welding -6-
- Integrated with antenna body
3. Antenna body
4. Antenna connection
- Terr - to Satellite Radio -R146-
- Beige connector
5. Antenna connection
- SAT - to Satellite Radio -R146-
- Black connector
