Antenna Amplifier: Service and Repair

Antenna Amplifier -R24- (or Impedance Transformer) - Convertible, Removing and Installing

Removing
- Remove A-pillar upper trim
- Remove sun visors
- Remove interior rear view mirror
- Remove Make-up mirrors lights







- Disconnect antenna harness

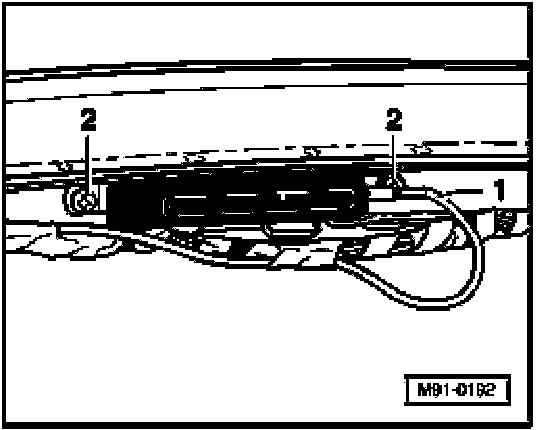

- Remove screws -2-.

Installing
- Install in reverse order of removal.
