Home >> Volkswagen >> 2005 >> New Beetle Convertible (1Y1) L4-2.0L (BEV) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> ABS ITT Mark 20 IE >> DTC 00285

DTC 00285



DTC 00285

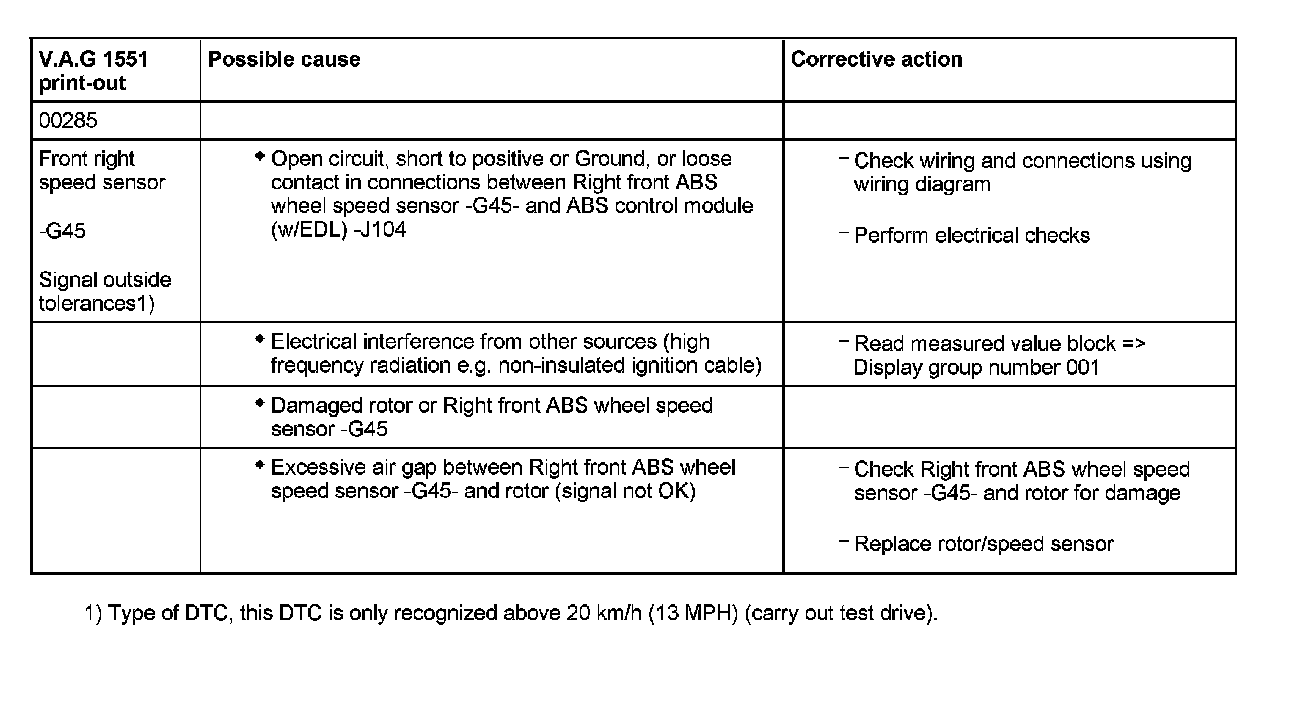

DTC 00285 (Part 1):

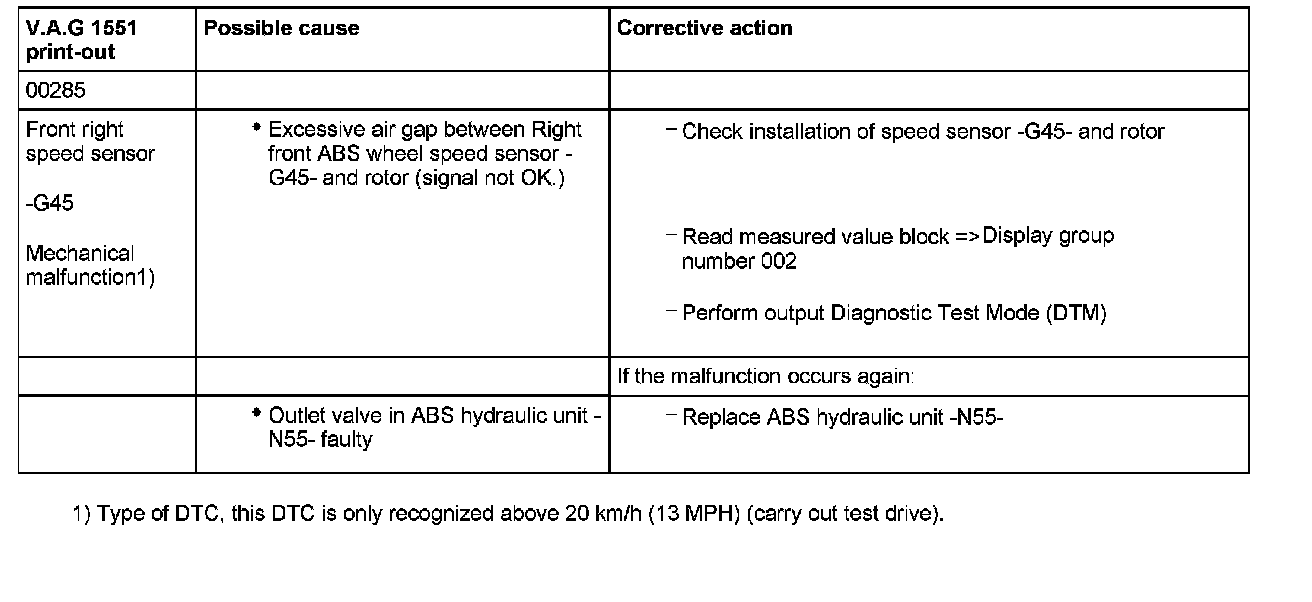

DTC 00285 (Part 2):

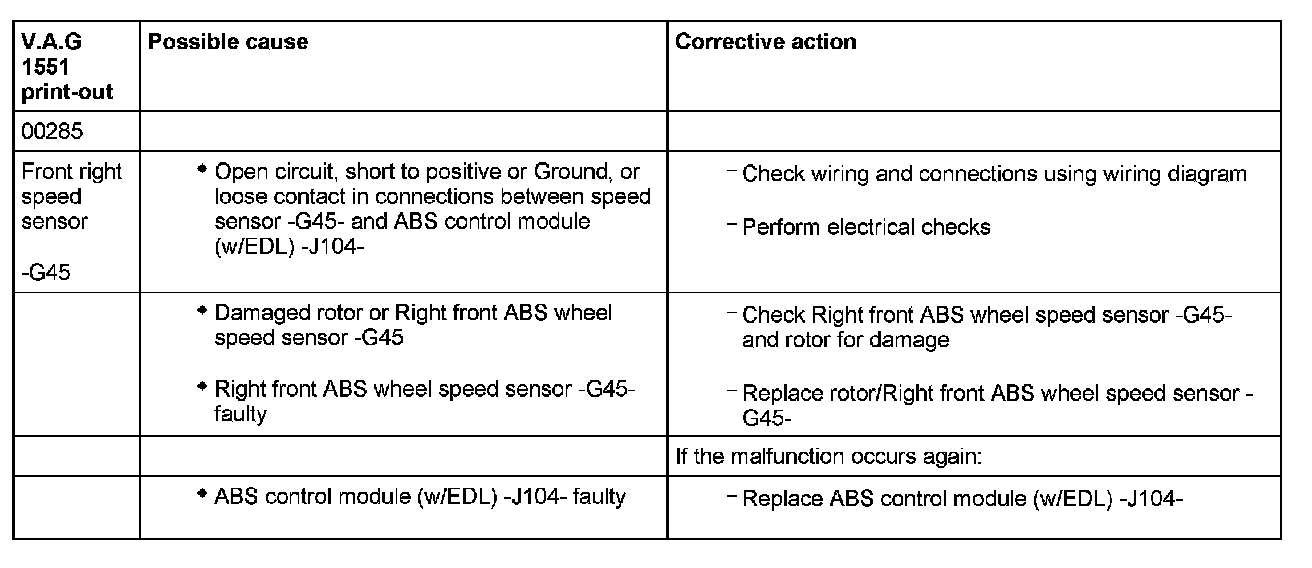

DTC 00285 (Part 3):
