Diagnostic Trouble Code (DTC) Memory, Checking

Diagnostic Trouble Code (DTC) memory, checking, 09G, 6 Spd. A/T
- Connect VAS 5051 and select functions.

The following description refers to the V.A.G 1551

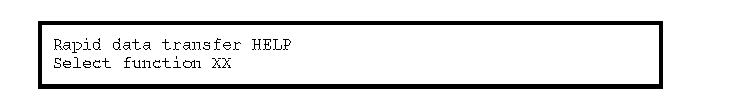

Indicated on display
- Press keys 0 and 2. (02 selects function "Check DTC memory").

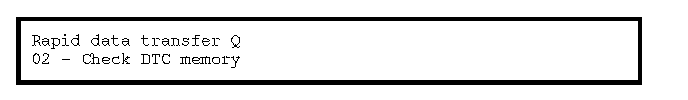

Indicated on display
- Confirm entry with Q key.





The number of DTCs stored or "No DTC detected!" will be shown on the display.

If one or more DTCs are stored:
The stored DTCs will be displayed and printed out one after the other.





After the stored DTCs have been printed out, the display will show:
- Eliminate printed-out DTCs using appropriate table.
- Erase DTC memory

If no DTC is stored:
- Press -> key.





Indicated on display
- Press keys 0 and 6 for "End data transfer" function and confirm input with Q key.
