Fuel Gauge Sender: Service and Repair

Fuel Gauge Sender, Removing And Installing

Removing
- Remove fuel delivery unit.

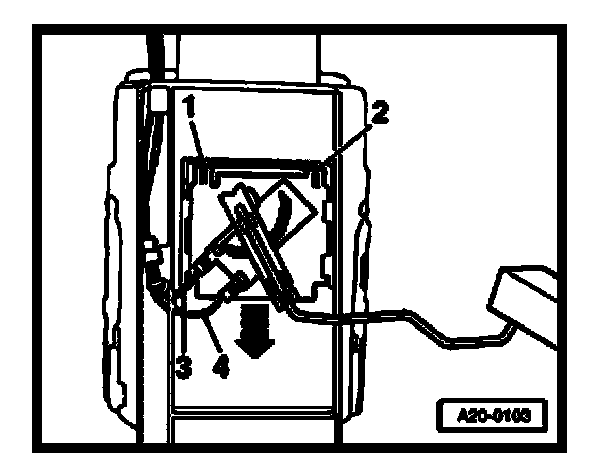

- Release line connector lugs -3- and -4- and pull off.
- Lift up retaining lugs -1- and -2- using a screwdriver and pull fuel sender off downward -arrows-.

Installing
- Insert fuel gauge sender in guides on fuel delivery unit and push up until it engages.
- Connect terminals for wires and lock.
- Install fuel delivery unit.
