Charge Air System With Turbocharger - I

Charge Air System With Turbocharger

NOTE:
- All hose connections are secured with clamps.
- Charge air system must be properly sealed.
- Always replace self-locking nuts.
- Charge pressure hoses and their connections must be free of grease before re-installation.

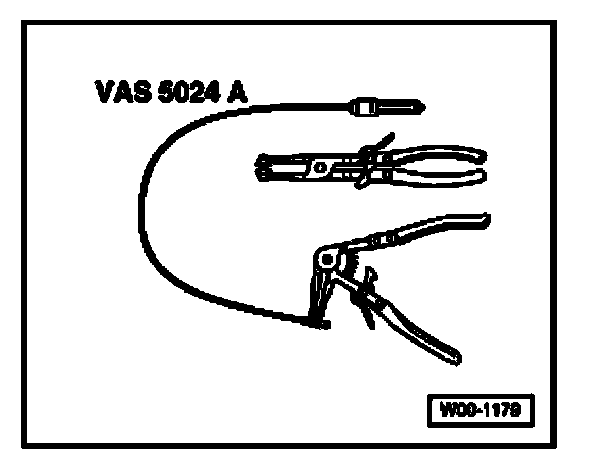

- VAS 5024A spring clip installation tool is recommended for installing spring-type clips.
- Components marked with * are tested via On Board Diagnostic (OBD). Diagnostic mode 3: Check DTC memory.
Observe rules for cleanliness.
Observe safety precautions.
