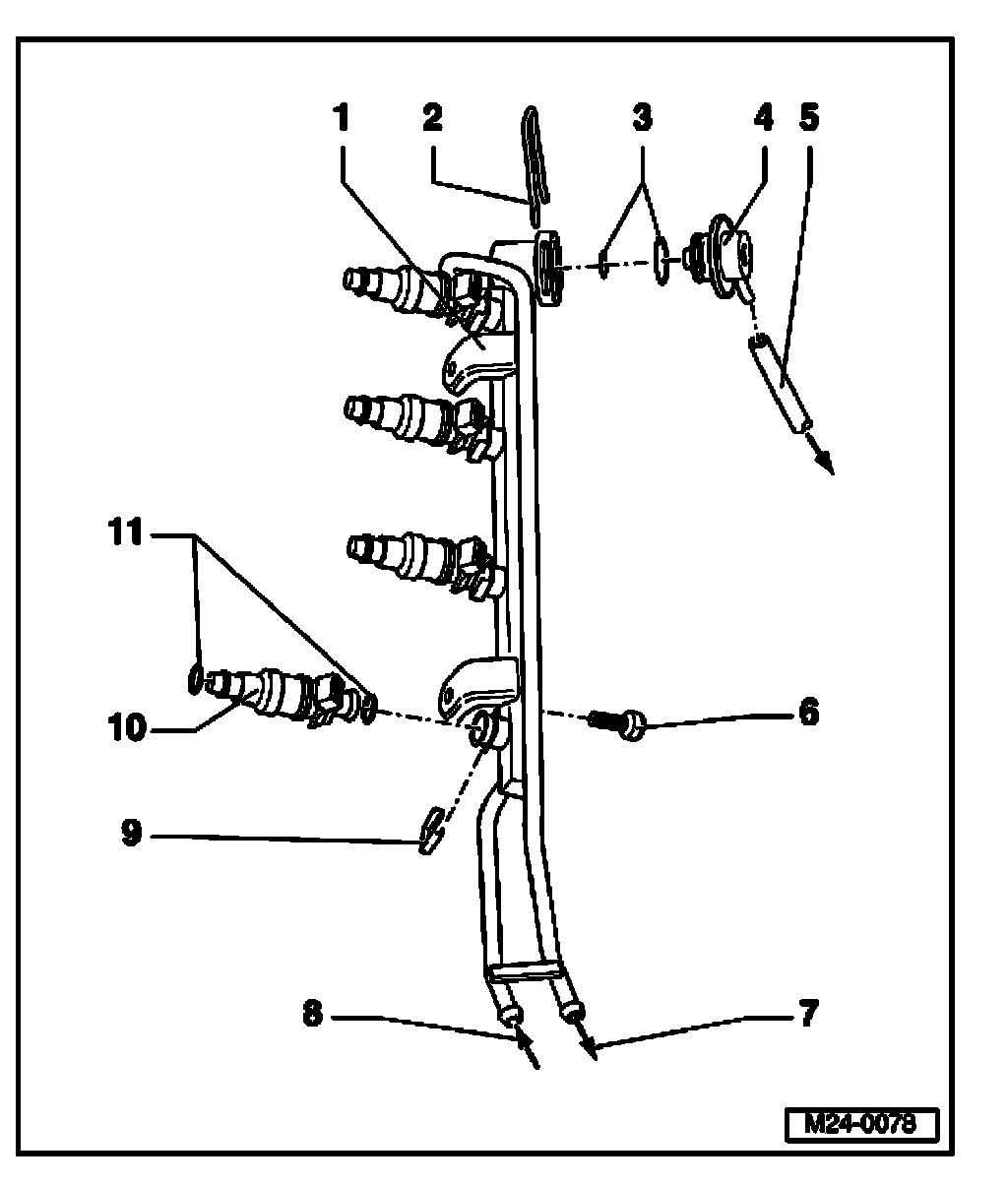

Fuel Rail With Injectors, Assembly Overview

Fuel Rail With Injectors, Assembly Overview







1. Fuel rail
2. Securing clip
- Check for secure seating
3. O-ring
- Replace if damaged
- Before installing moisten with clean engine oil
4. Fuel pressure regulator
5. Vacuum hose
- To intake manifold
6. 10 Nm
7. Return hose
8. Supply line
9. Securing clip
- Ensure seated correctly at injector and fuel rail
10. Injector (-N30--N30-)
- 2-pin connector
11. O-ring
- Replace
- Before installing moisten with clean engine oil.
