EVAP Canister System Components, Removing and Installing

EVAP Canister System Components, Removing And Installing

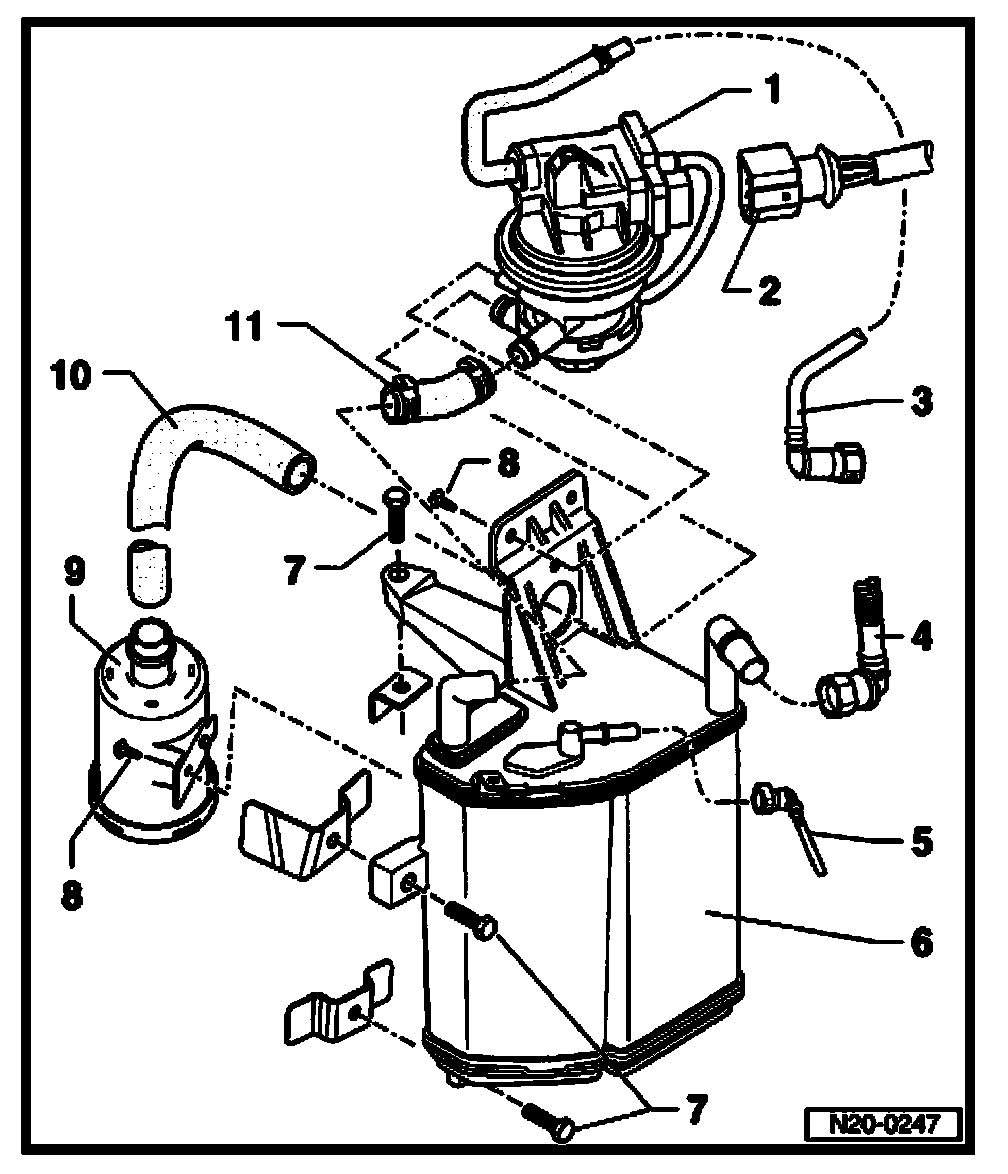

1. Leak Detection Pump (LDP) -V144-*
- Under wheel housing liner in right rear wheel housing
2. Connector
- Black, 3-pin
3. Vacuum line
- Check for secure seating
- To disengage, squeeze together at front
- To T-piece of vacuum reservoir
4. Ventilation line
- Check for secure seating
- To disengage, squeeze together at front
- To change-over valve
5. Ventilation line
- Check for secure seating
- To disengage, squeeze together at front
- To T-piece of Evaporative Emission (EVAP) Canister Purge Regulator Valve / pressure retaining valve
6. EVAP canister
- Under wheel housing liner in right rear wheel housing
7. 10 Nm
8. 3 Nm
9. Air filter for diagnostic pump
10. Connection hose
- Intake side
- Check for secure seating
11. Connection hose
- Pressure side
- Check for secure seating
