Oxygen Sensor and Oxygen Sensor Control Behind Catalytic Converter, Checking
Oxygen Sensor And Oxygen Sensor Control Behind Catalytic Converter, Checking
NOTE:
- Vehicle must be raised before oxygen sensor connector is accessible.

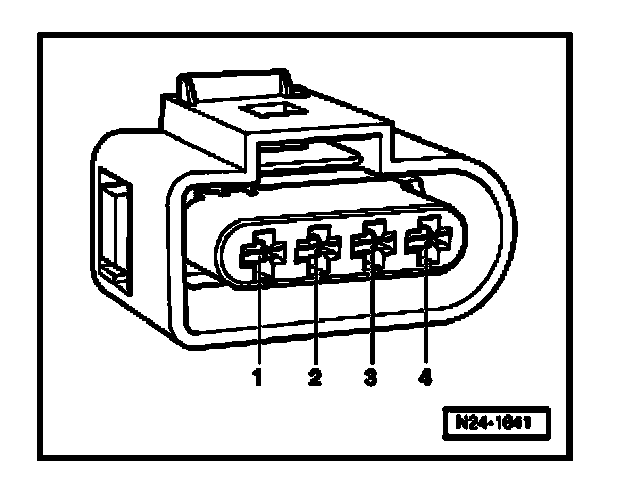

- When servicing terminals 3 and 4 in harness connector of Heated Oxygen Sensor (HO2S), use only gold-plated terminals.
Recommended special tools and equipment
- V.A.G 1526 multimeter or V.A.G 1715 multimeter
- V.A.G 1594 connector test kit
- Wiring diagram
Test requirements

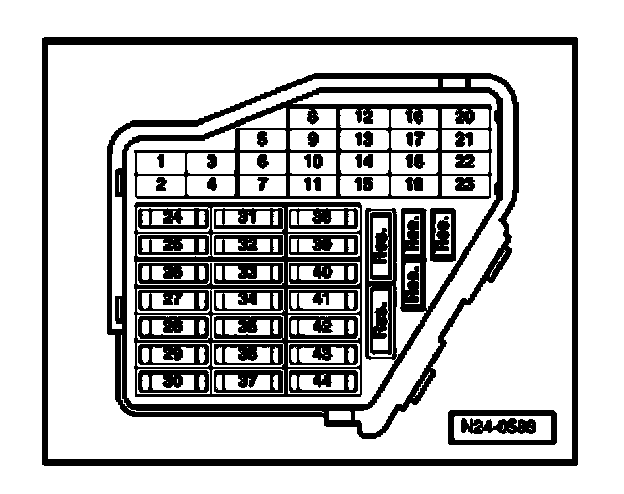

- The respective fuses of Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- must be OK.
- Battery voltage must be at least 11.5 volts.
- All electrical consumers such as: lights and rear window defroster must be switched off.
- Parking brake must be engaged or else day time driving lights will be switched on.
- If vehicle is equipped with an A/C system, it must be switched off.
- For vehicles with automatic transmission, selector lever must be in -P-.
- Ground (GND) connections between engine and chassis must be OK.
- Exhaust system must be properly sealed between catalytic converter and cylinder head.
- Coolant temperature must be at least 80 degrees C. Diagnostic mode 1: Check measured values; PID 5, Coolant temperature. Diagnostic Mode 1: Check Measured Values
- Oxygen sensor heater for oxygen sensor behind catalytic converter must be OK, check. Oxygen Sensor Heater For Oxygen Sensor Behind Three Way Catalytic Converter (TWC), Checking
Function test
- Select the following output of oxygen sensor signals and check whether the specified values are being reached. Diagnostic mode 5: Check output of oxygen sensor signals. Diagnostic Mode 5: Check Output of Oxygen Sensor Signals
- End diagnosis and switch ignition off.
If specified values are not obtained:
- Check oxygen sensor wires to control module according to wiring diagram.
Checking oxygen sensor wires to control module

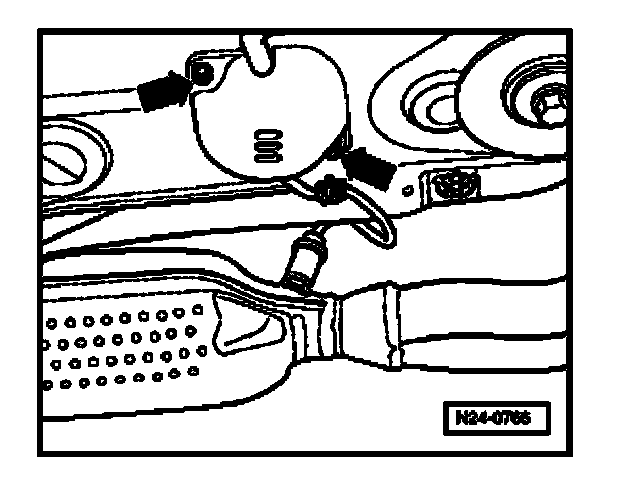

- Unscrew protective cover (arrows) and disconnect 4-pin harness connector to Oxygen Sensor (O2S) in Center Three Way Catalytic Converter (TWC), Bank 1 -G465-
- Connect test box to control module wiring harness. connect test box for wiring test. Test Box, Connecting For Wiring Test
Vehicles with engine code APH, AWP, AWV
- Check wires between test box and 4-pin connector to Engine Control Module (ECM) for open circuit according to wiring diagram.
Terminal 3 + socket 68
Terminal 4 + socket 69
Wire resistance: max. 1.5 Ohms
Vehicles with engine code BKF, BNU
- Check wires between test box and 4-pin connector to Engine Control Module (ECM) for open circuit according to wiring diagram.
Terminal 3 + socket 10
Terminal 4 + socket 11
Wire resistance: max. 1.5 Ohms
Continue for all vehicles
- Check wires for short circuit to B+ and to Ground (GND).
Specified value: Infinite Ohms
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes
If no malfunctions are found in wires:
Vehicles with engine code APH, AWP, AWV
- Replace Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G130- bank 1.
Vehicles with engine code BKF, BNU
- Replace Oxygen Sensor (O2S) 3 Behind Three Way Catalytic Converter (TWC) -G130- bank 1.
Continue for all vehicles
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes
