Fuel Pump (FP), Checking - I



Fuel Pump (FP), Checking

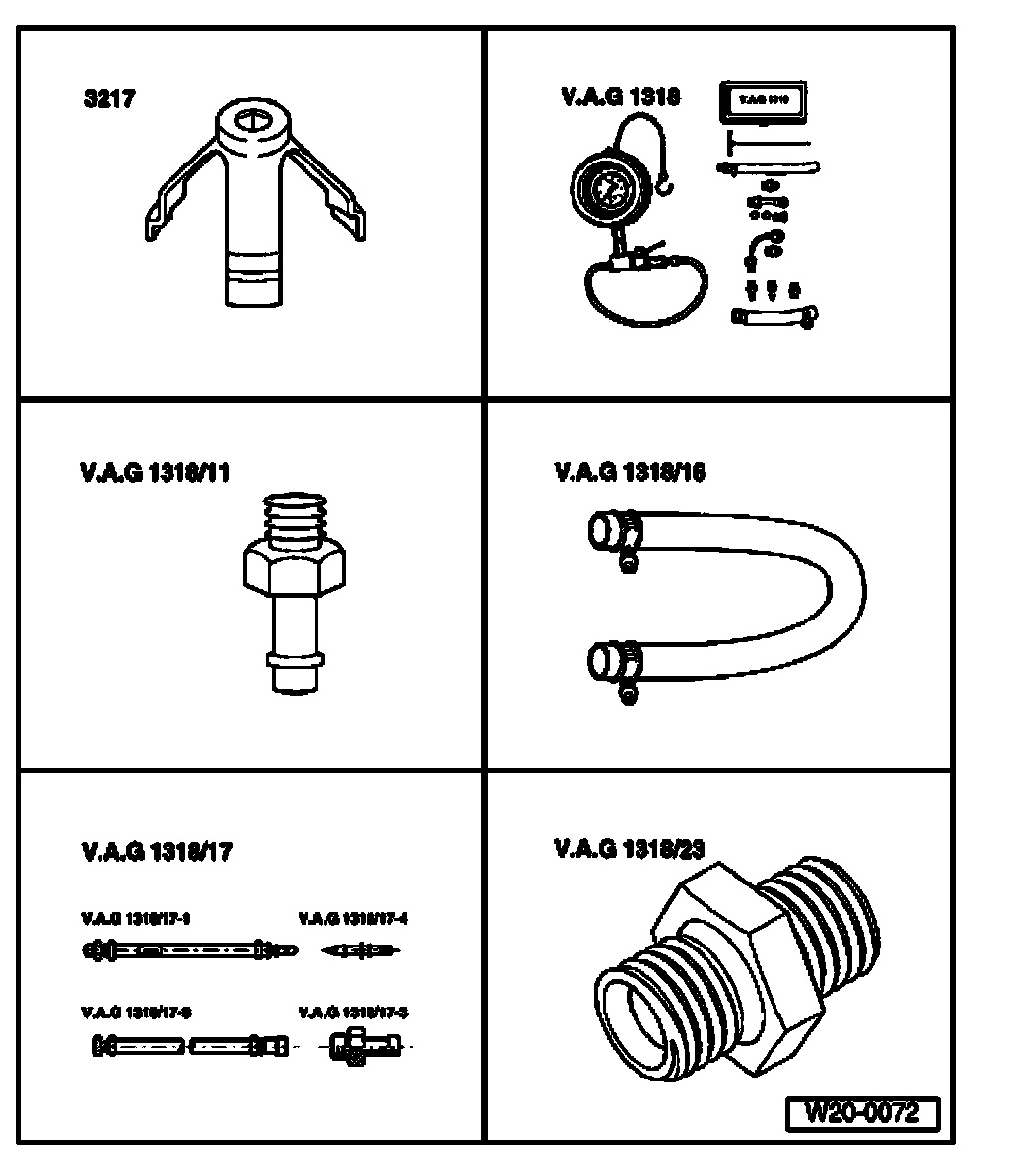

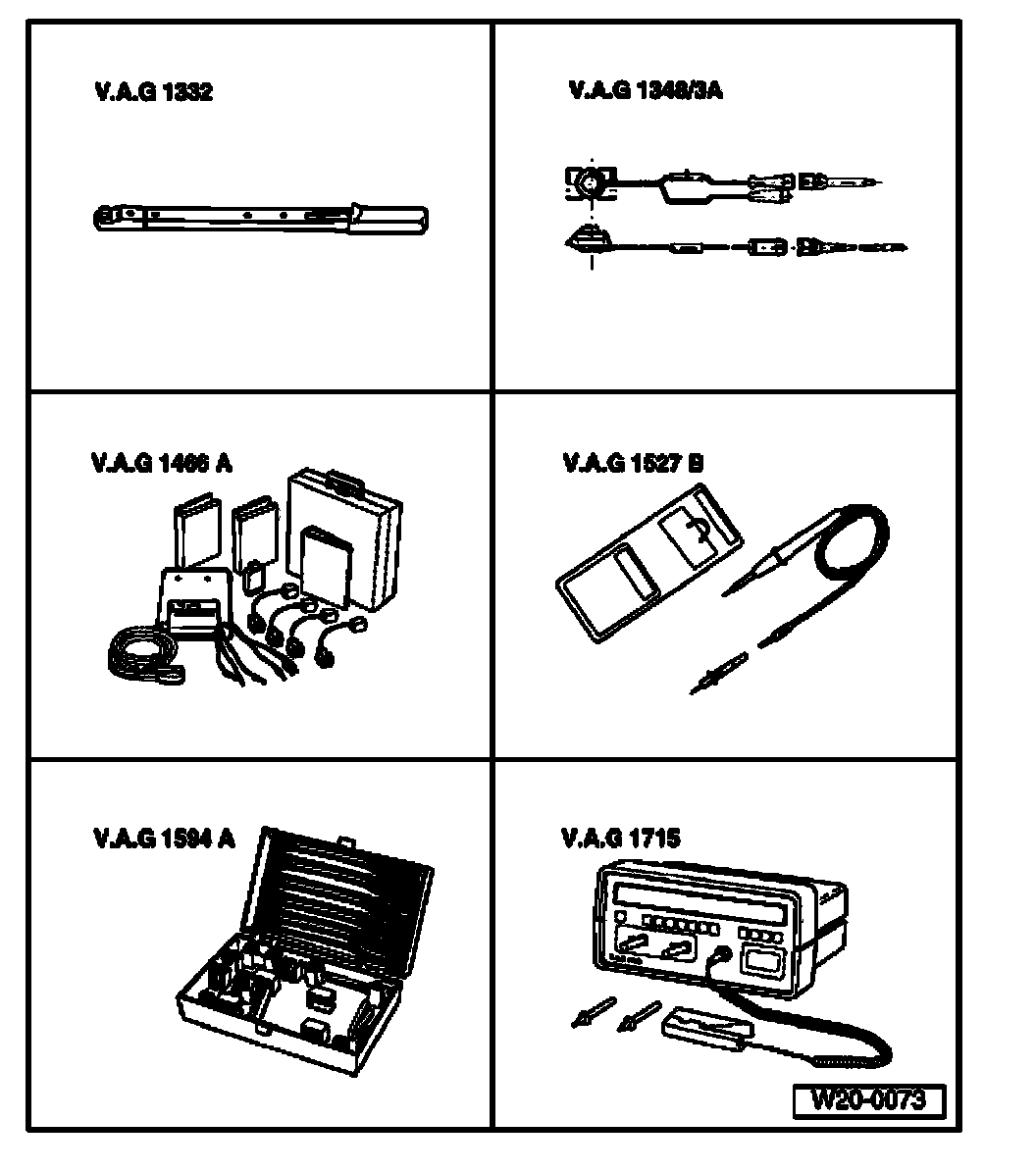

Recommended special tools and equipment
- 3217 ring nut wrench
- V.A.G 1318 pressure gauge
- V.A.G 1318/11 adapter
- V.A.G 1318/16 hose adapter
- V.A.G 1318/17 adapter
- V.A.G 1318/23 adapter







- V.A.G1332 torque wrench (40 to 200 Nm)
- V.A.G 1348/3A remote control with V.A.G 1348/3-2 adapter cable
- V.A.G1466 electrical circuit tester
- V.A.G 1527B voltage tester
- V.A.G 1594A connector test kit
- V.A.G 1715 multimeter
- Measuring container
- Wiring diagram

Test requirements







- Fuse no. 28 for Fuel Pump (FP) must be OK.
- Battery voltage must be at least 11.5 volts.
- All electrical consumers such as: lights and rear window defroster must be switched off.
- If vehicle is equipped with an A/C system, it must be switched off.
- Parking brake must be engaged or else day time driving lights will be switched on.
- For vehicles with automatic transmission, selector lever must be in -P-.

NOTE: Note function description of crash fuel shut-off.

Observe safety precautions.
Observe rules for cleanliness.

Checking function and voltage supply
- Fold rear seatback forward.
- Remove cover from Fuel Pump (FP)
- Operate starter briefly. Fuel pump must audibly start up.
- Switch ignition off.

If Fuel Pump (FP) does not start up:

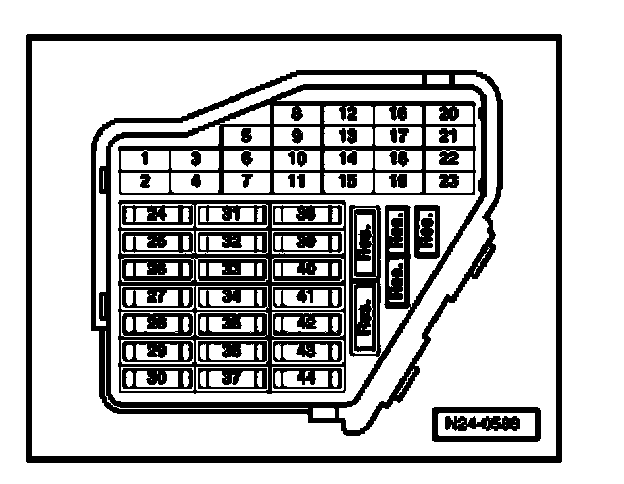

- Remove cover in front of fuse holder.







- Remove fuse no. 28 (fuel pump) from fuse holder.

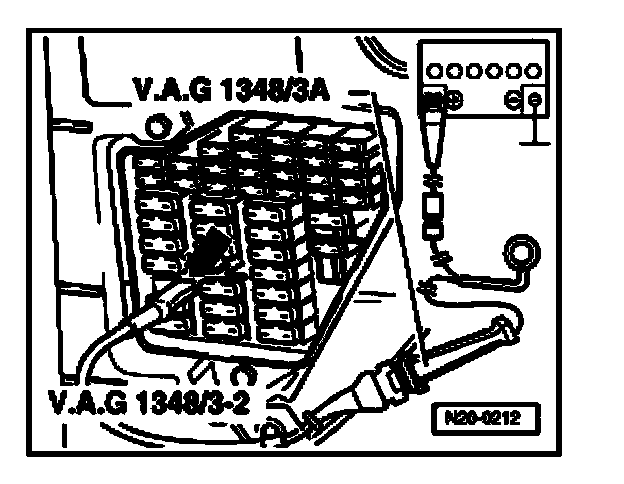

- Connect V.A.G1348/3A remote control to Fuel Pump (FP) and B+ at terminal 28a using remote control connection (V.A.G1348/3-2).
- Operate remote control.

If Fuel Pump (FP) runs:
- Check activation of Fuel Pump (FP) Relay -J17- according to wiring diagram.


If Fuel Pump (FP) does not run:

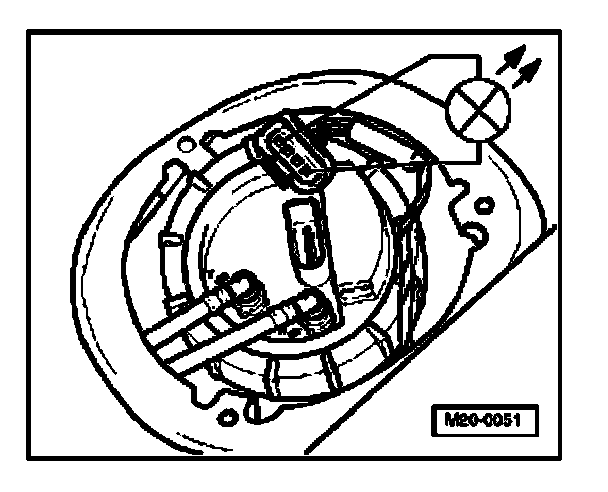

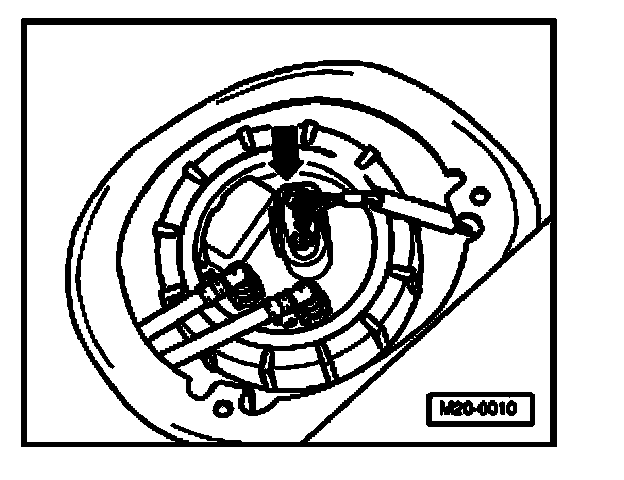

- Disconnect 4-pin harness connector from flange at fuel tank (arrow).







- Connect V.A.G 1527 B voltage tester to the outer terminals of the connector.
- Operate remote control.

LED must light up.

LED does not light up:
- Locate and repair open circuit using wiring diagram:


LED lights up (voltage supply OK):

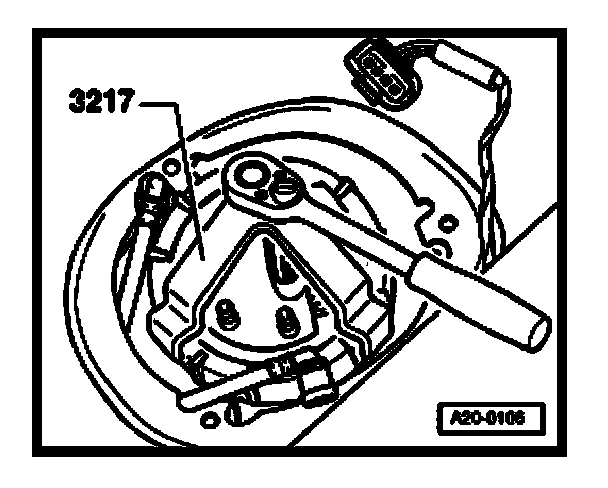

- Use 3217 ring nut wrench to remove union nut.
- Check whether electrical wires between flange and Fuel Pump (FP) are connected.

If there are no open circuits:
- Fuel Pump (FP) faulty, replace Fuel Pump (FP) unit.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

Checking fuel delivery quantity

Test requirements
- Voltage supply OK
- Remote control is still connected.

Test sequence
- Remove fuel filler cap from fuel filler tube.

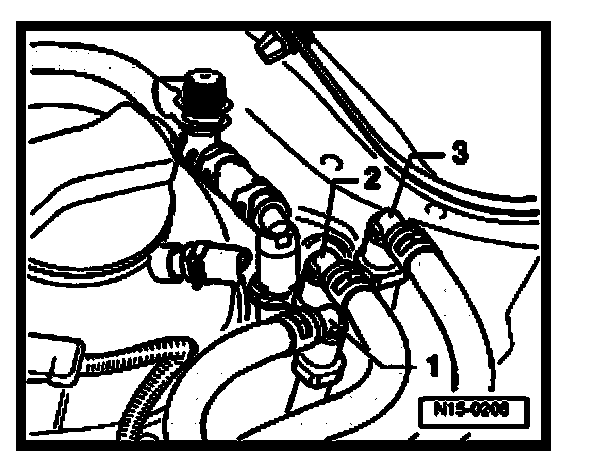

- Disconnect supply line -3- (black with white marking) and catch escaping fuel using a rag.

NOTE: Press in securing ring to disengage the fuel lines.

WARNING:
- The fuel or fuel lines in fuel system can become very hot (danger of scalding).
- In addition, the fuel system is under pressure. before opening the system, place rags around the connection area and release pressure by carefully loosening the connection.
- Wear protective goggles and protective gloves when working on the fuel system.

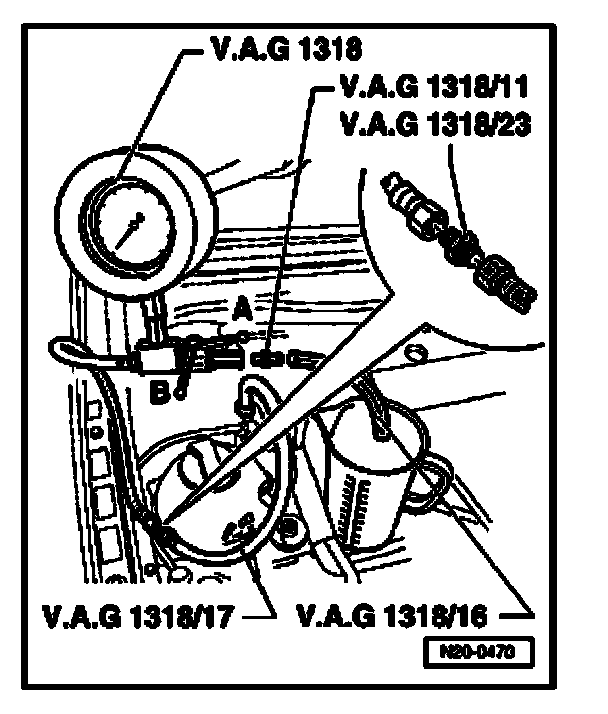

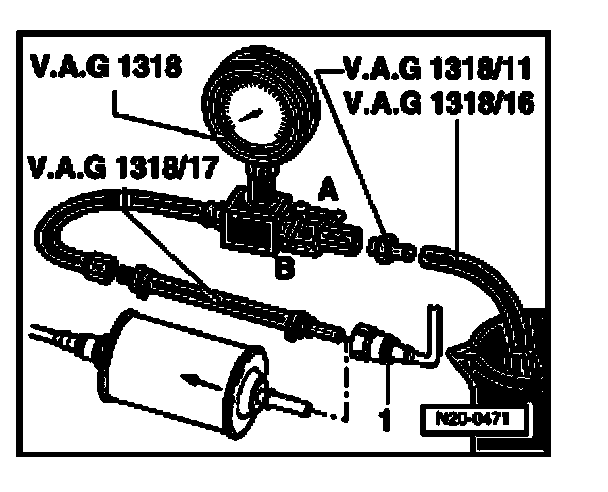

- Connect pressure gauge (V.A.G1318) to fuel supply line using adapters (V.A.G1318/23 and V.A.G1318/17).
- Connect hose adapter (V.A.G1318/16) to adapter (V.A.G1318/11) of pressure gauge and hold into measuring container.
- Open shut-off valve of pressure gauge. Lever will point in direction of flow -A-.
- Operate remote control. Slowly close shut-off valve until on pressure gauge 3 bar positive pressure is indicated. Do not change position of shut-off valve any more.
- Empty measuring container.
- Delivery rate of Fuel Pump (FP) is dependent on battery voltage. Therefore, connect multimeter to vehicle battery using adapter cables.
- Operate remote control 30 seconds long and measure battery voltage.







- Compare fuel quantity pumped with specified value.

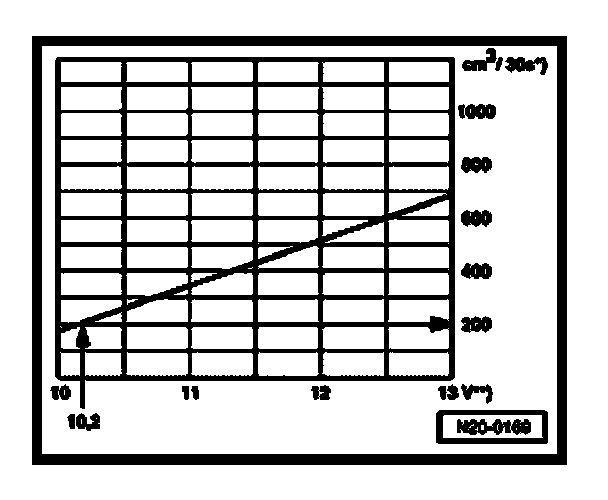

- *)Minimum delivery rate cubic cm/30 s
- **)Voltage at Fuel Pump (FP) with engine off and pump running (approx. 2 volts less than battery voltage).

Read-out example:
During test, a voltage of 12.2 volts is measured at battery. Since the voltage at the pump is approx. 2 volts less than battery voltage, there is a minimum delivery rate of 200 cubic cm/30 s.

If minimum delivery rate is not obtained:
- Check fuel lines for possible restrictions (kinks) or clogging.







- Disconnect supply line -1- from fuel filter input.

NOTE: Depress buttons on hose connections to do so.

WARNING:
- The fuel or fuel lines in fuel system can become very hot (danger of scalding).
- In addition, the fuel system is under pressure. Before opening the system, place rags around the connection area and release pressure by carefully loosening the connection.
- Wear protective goggles and protective gloves when working on the fuel system.

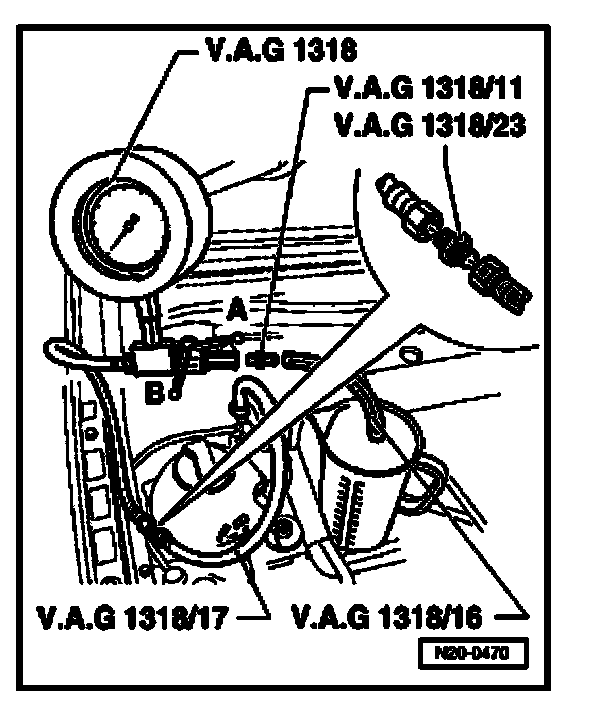

- Connect pressure gauge (V.A.G1318) with adapter (1318/17) to hose.
- Repeat test of delivery quantity.

If minimum delivery rate is obtained:
- Replace fuel filter.

If minimum delivery rate is still not obtained:
- Remove Fuel Pump (FP) and check filter strainer for dirt.

Only if no malfunctions have been found yet:
- Fuel Pump (FP) faulty, replace Fuel Pump (FP) unit.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

Delivery rate has been obtained, but malfunctions are still suspected in the fuel supply (e.g. sporadic loss of fuel supply):
- Reconnect all disconnected fuel lines.
- Check current pick-up of Fuel Pump (FP).

Current pick-up of Fuel Pump (FP), checking

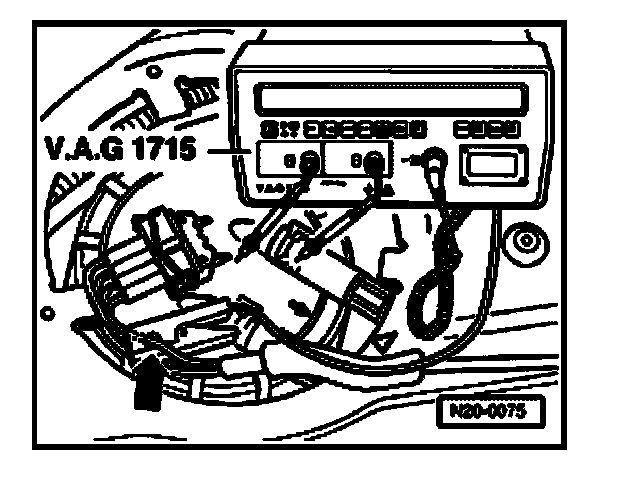

- Connect multimeter with electrical current probe to wire of 4-pin connector (terminal 1 arrow) from wiring harness.
- Start engine and let run at idle.
- Measure Fuel Pump (FP) current draw.

Specified value: max. 8 amperes

NOTE: If malfunction in fuel system is sporadic, test can also be performed during a road test, but a second person is required.

If current pick-up is exceeded:
- Fuel Pump (FP) faulty, replace Fuel Pump (FP) unit => page 20-14. Fuel Pump (FP) unit, removing and installing.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

Fuel Pump (FP) check-valve, checking

Test requirements
- Remote control is still connected.
- Pressure gauge is still connected.

Test sequence

NOTE: This test also checks the connections of the fuel supply line from Fuel Pump (FP) unit to connection point of pressure gauge for proper seal.







- Close pressure gauge shut-off valve (lever perpendicular to direction of flow, -position B-).
- Operate remote control in short intervals until a positive pressure of approx. 3 bar has built up.
- If excess pressure is built up, reduce pressure by carefully opening shut-off valve.

WARNING: Danger of spray when opening shut-off valve. hold container in front of free connection on pressure gauge.

- Observe pressure drop on pressure gauge. Pressure must not fall below 2.5 bar.

If pressure drops further:
- Check line connections for proper seal.

If no malfunctions are found in wires:
- Fuel Pump (FP) faulty, replace Fuel Pump (FP) unit.
- Re-connect all disconnected fuel lines.
- Erase DTC memory of Engine Control Module (ECM). Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes
