Engine, Removing and Installing

Engine, removing and installing

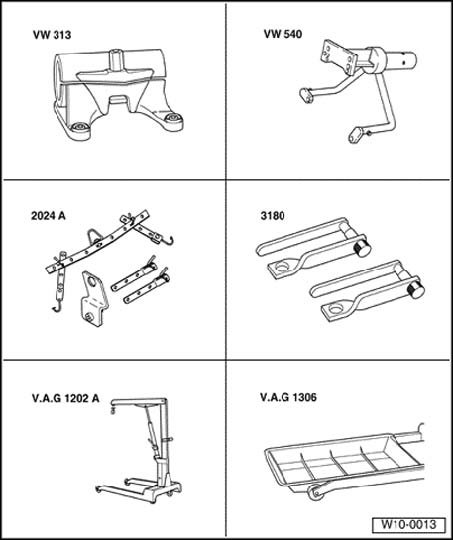

Special tools, testers and auxiliary items required
^ Support clamp VW 313
^ Engine and transmission stand VW 540
^ Engine sling 2024 A
^ Retainer 3180
^ Workshop crane V.A.G 1202 A
^ Drip tray V.A.G 1306

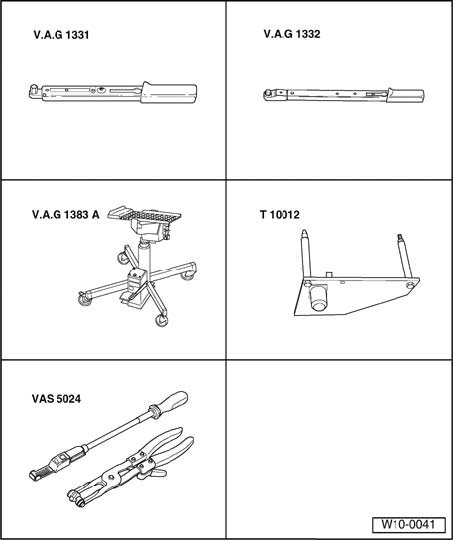

Special tools, testers and auxiliary items required
^ Torque wrench V.A.G 1331
^ Torque wrench V.A.G 1332
^ Engine/transmission jack V.A.G 1383 A
^ Engine bracket T10012
^ Spring-type clip pliers VAS 5024
^ Ladder VAS 5085
^ Grease (vehicles with a manual transmission) G 000 100
^ Bolt M 1025 / 8.8
^ Cable ties
