Convertible Top Hydraulic Cylinder: Locations

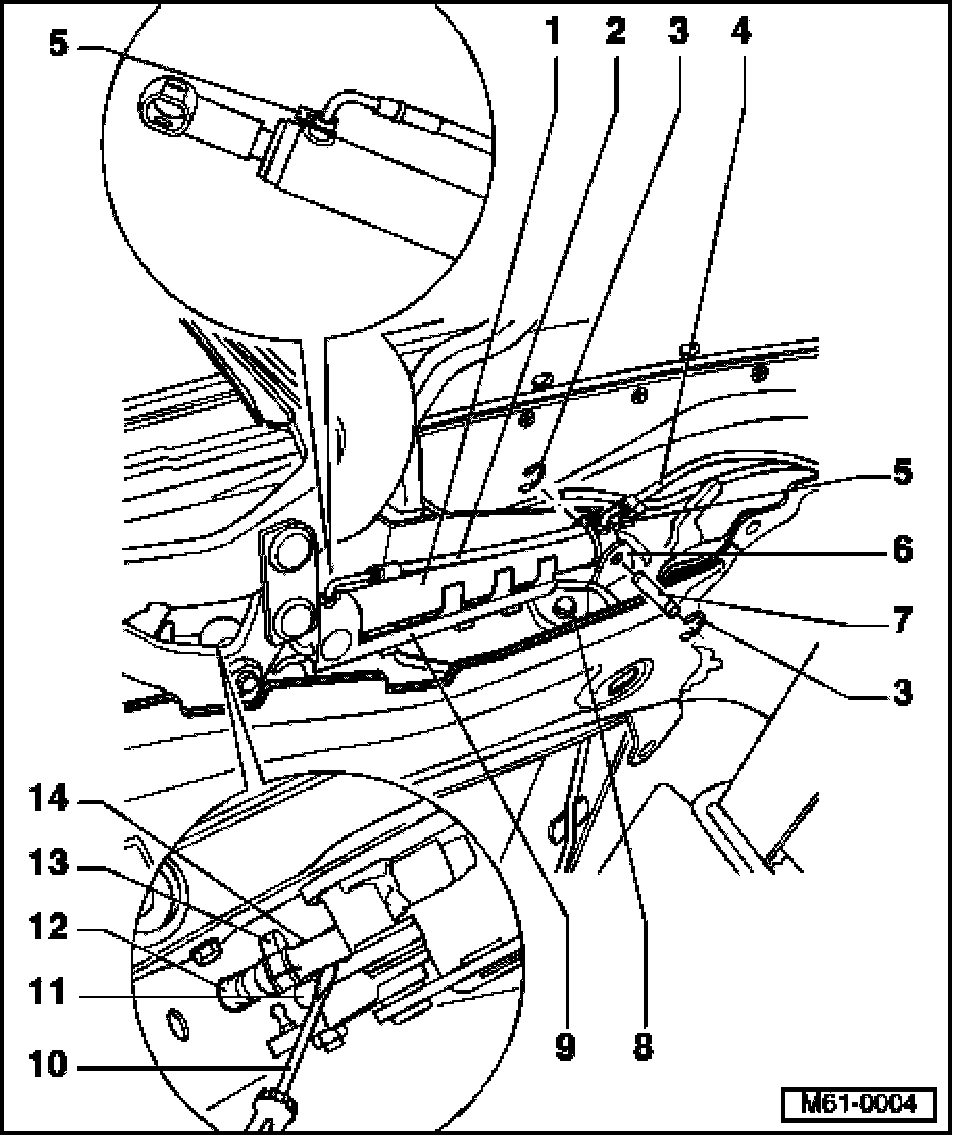

Hydraulic Cylinder, Assembly Overview

CAUTION:
- Hydraulic system reacts with extreme sensitivity to all types of contaminants.
- As soon as system is opened, respective component must be covered, to prevent dirt entering hydraulic system.







1. Hydraulic cylinder
2. Hydraulic hoses
3. Circlip
4. Hydraulic hoses
5. Retaining clip
6. Retainer
7. Pin
8. Bolt/screw
- 23 Nm
- Qty. 2
9. Convertible Top Open Position Switch F171
- Installed only on right-hand side.
10. Screwdriver
11. Ball head
12. Cover
13. Securing clip
14. Piston rod
