Lower Rear Lid Trim, Removing and Installing

Lower Rear Lid Trim, Removing And Installing 12.04 -->

Removing

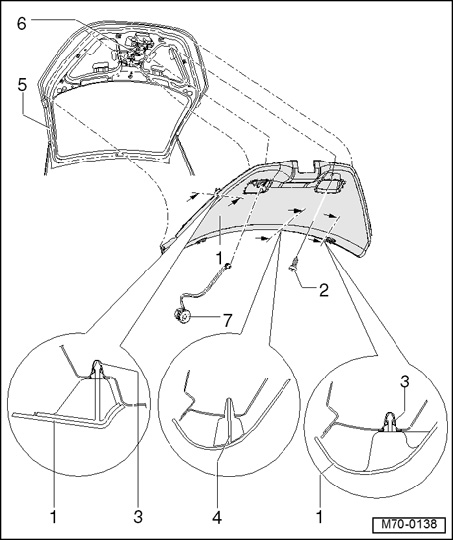

- Remove bolt - 2 - from rear lid - 5 -.







- Remove lower edge of lower trim - 1 - from rear lid - 5 -, then pull out at both sides.
- Pull off upper edge of lower trim - 1 - from lid - 5 - and unhook pins - 4 -.

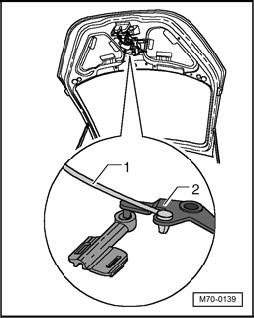

- Loosen rubber button with cable - 1 - from lid lock - 2 -.







- Loosen rubber button with cable - 2 - from lower trim - 1 - - arrow -.

Installing
Installation is the reverse of removal.

NOTE:
- Before assembling trim, check condition and seating of clips on lid. Replace clips if necessary.
- Replace rubber button with cable if damaged or broken.
