New Beetle (1C1) L4-1.8L Turbo (AWP)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1569
P1569

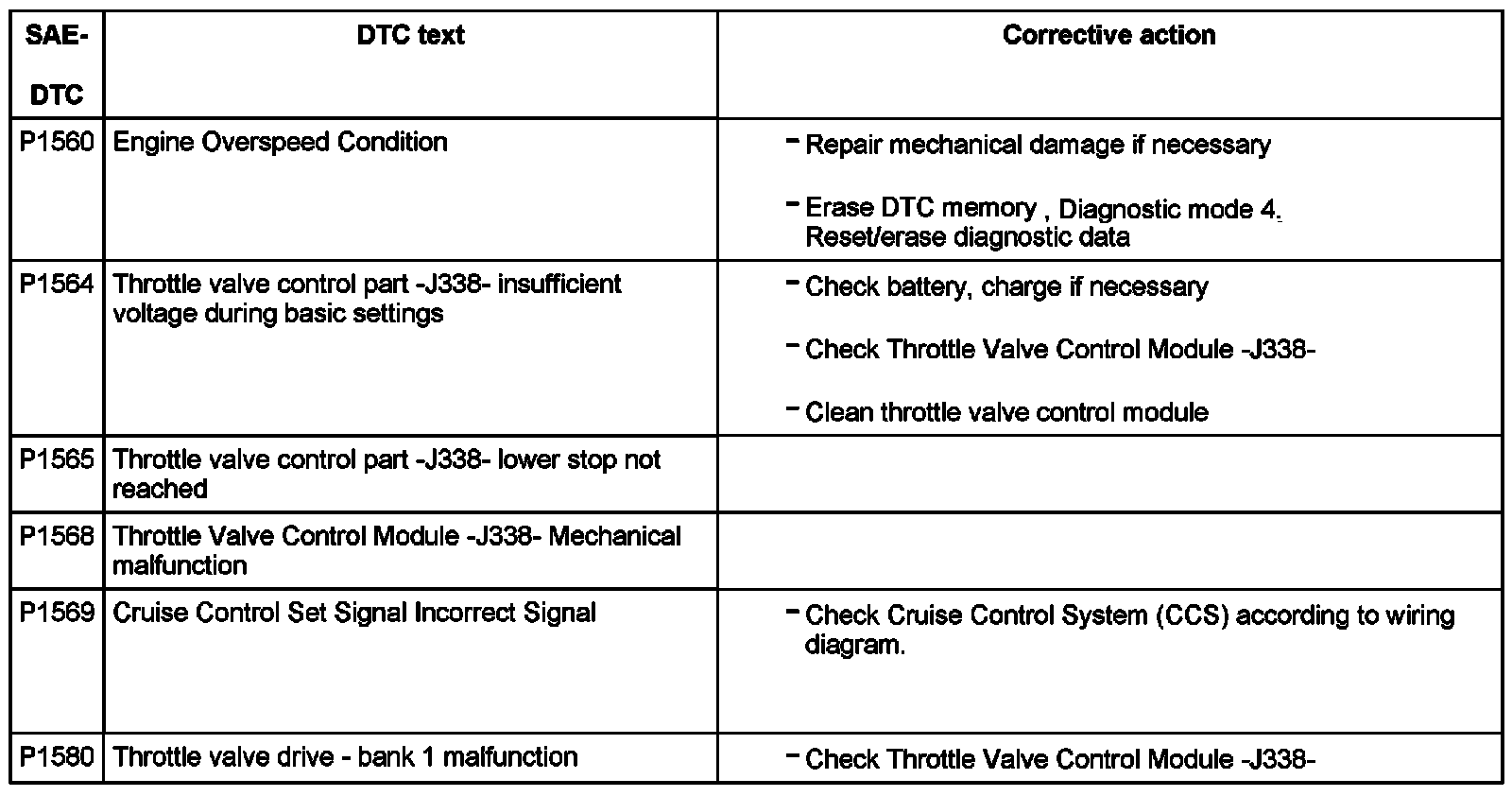

DTC P1560 - P1580:
