02M, 5 and 6 SPD. M/T
02M, 5 and 6 SPD. M/T

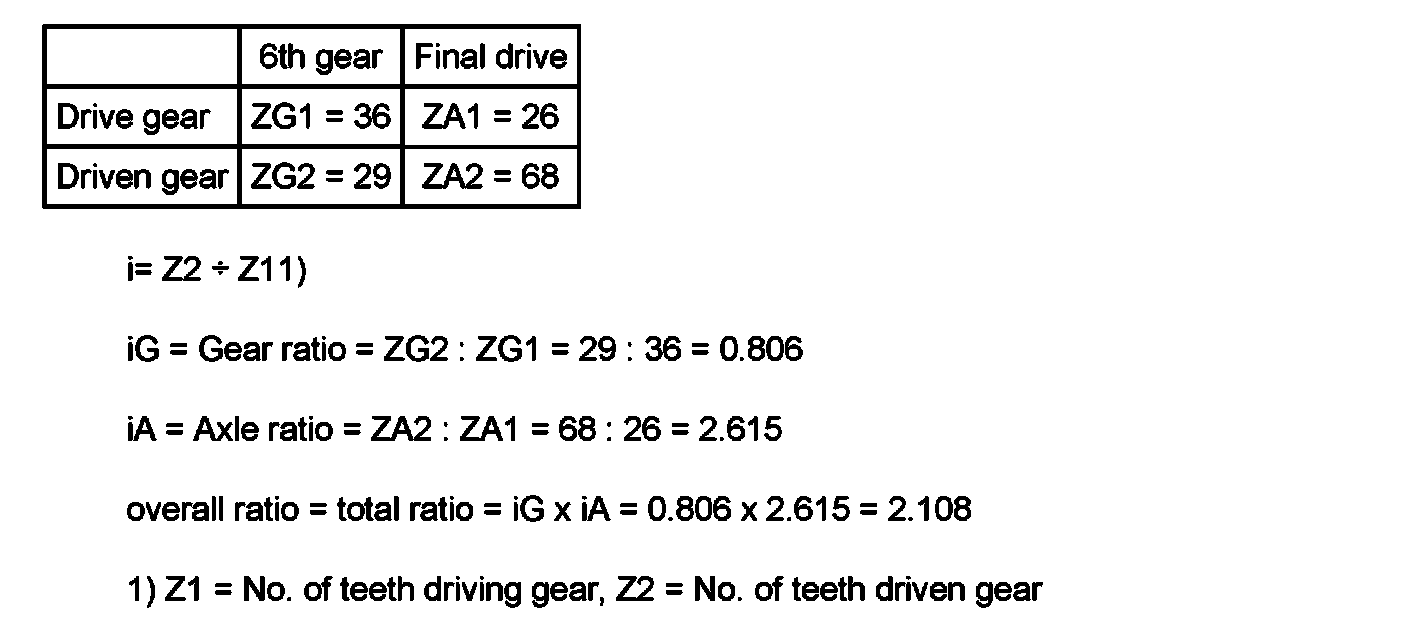

Calculating overall ratio 'i', 02M, 5 and 6 Spd. M/T
Example: 6-Speed standard transmission 02M
