02M, 5 and 6 SPD. M/T

Clutch release mechanism, servicing, 02M, 5 and 6 Spd. M/T

Special tools and equipment

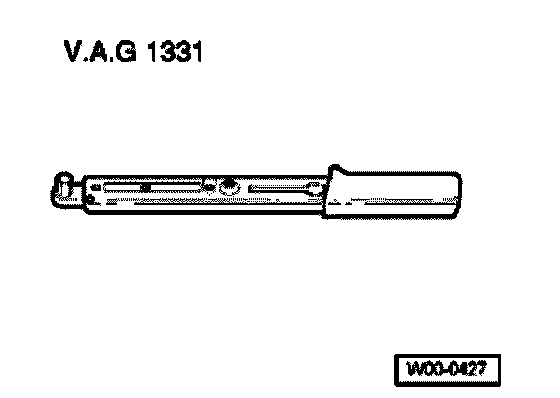

VAG 1331 Torque wrench or equivalent:

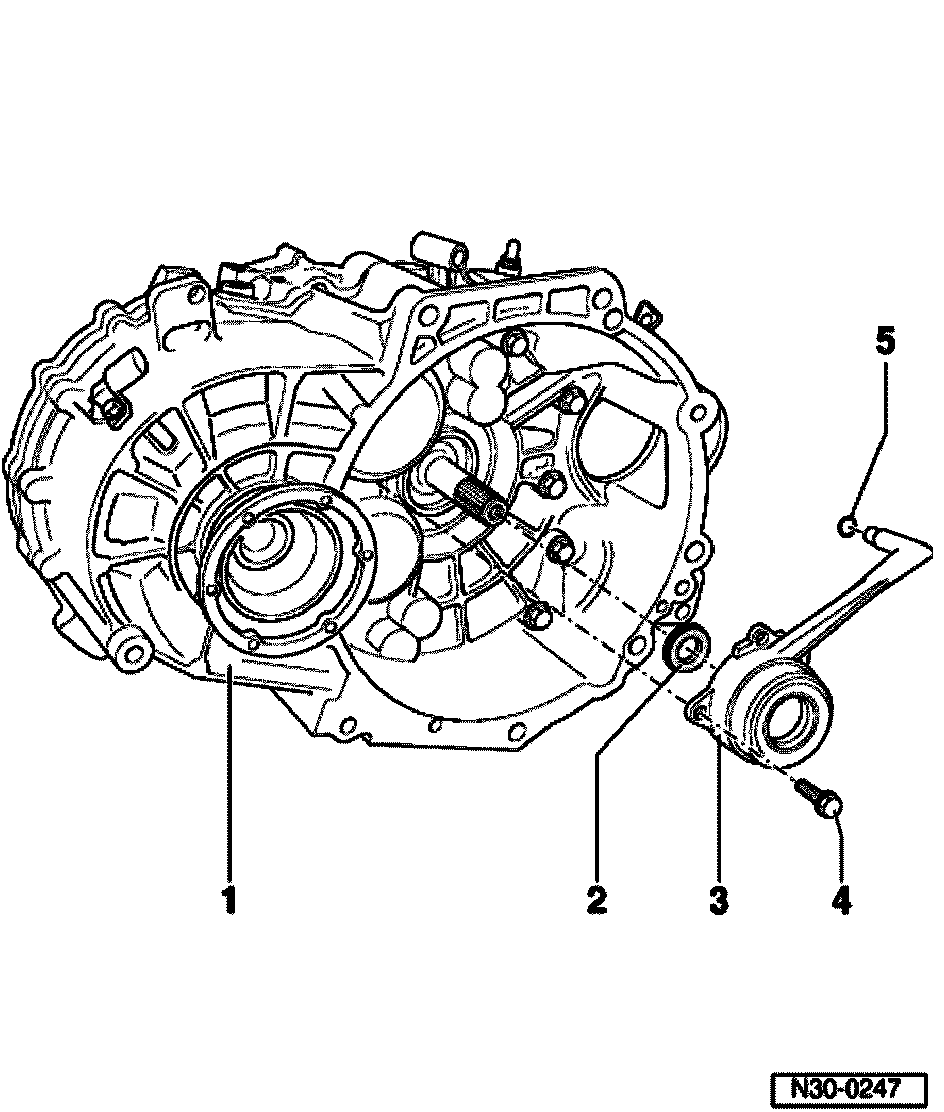

1 - Transmission
2 - Input shaft oil seal

3 - Slave cylinder with release bearing
^ One unit; can only be replaced together
^ Do not wash out bearing, only wipe
^ Replace noisy bearings together with slave cylinder

4 - Bolt, 12 Nm
^ Qty. 3

5 - Seal
^ Always replace
^ Pull onto line/hose connection
^ Insert with brake fluid
