Pedal Cluster Assembly, Overview

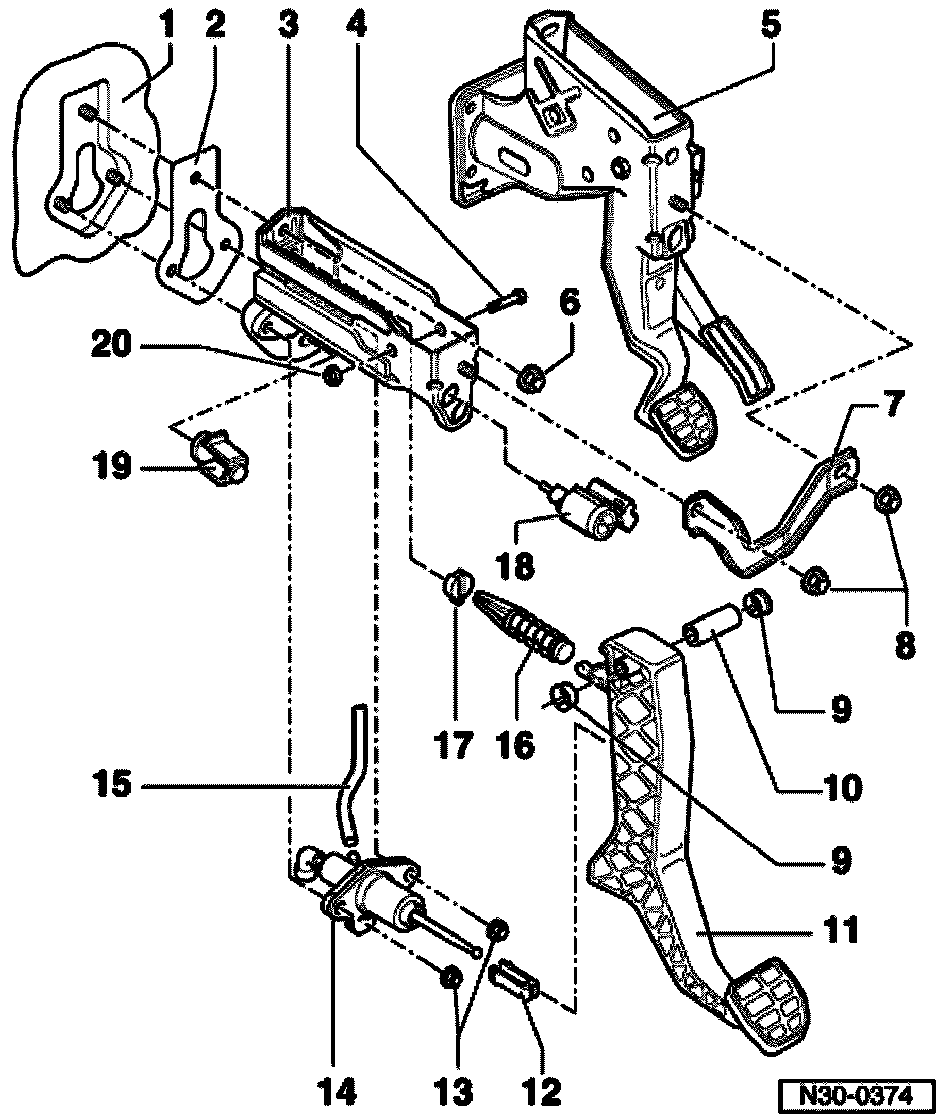

Pedal cluster assembly, overview, 02M, 5 and 6 Spd. M/T





1 - Bulkhead
^ With support and clutch master cylinder housing

2 - Gasket
^ Always replace

3 - Support
^ For clutch pedal housing

4 - Bolt
5 - Support
^ For accelerator and brake pedal housing

6 - Hex nut, self-locking 25 Nm
^ Always replace

7 - Connecting plate
8 - Hex nut, self-locking, 25 Nm
^ Always replace

9 - Mounting bushing
10 - Mounting pin
11 - Clutch pedal
12 - Bearing bracket
13 - Hex nut, self-locking, 25 Nm
^ Always replace

14 - Clutch master cylinder
15 - Circulation hose
16 - Over-center spring

17 - Over-center spring seating
^ Install in mounting bracket
^ To replace, remove and install clutch master cylinder

18 - Clutch vacuum vent valve switch -F36-
^ When removing and installing switch, push clutch pedal down as far as possible by hand.
^ Before removing clutch pedal, remove switch with left turn of 45and pull out from support through mounting hole.
^ Insert switch in mounting hole and secure with right turn of 45.

19 - Stop flange
^ For clutch pedal

20 - Hex nut, self- locking 25 Nm
^ Always replace
