Clutch Pedal, Removing and Installing

Clutch pedal, removing and installing, 02M, 5 and 6 Spd. M/T

Special tools and equipment

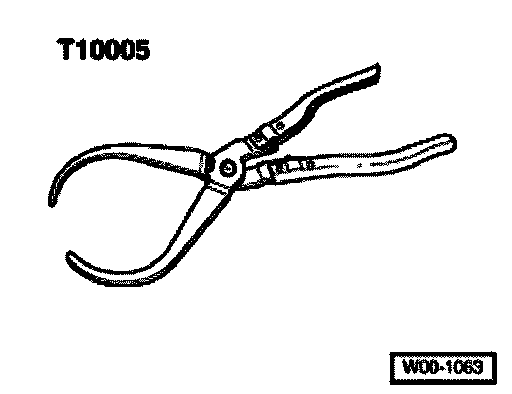

T10005 Pliers:

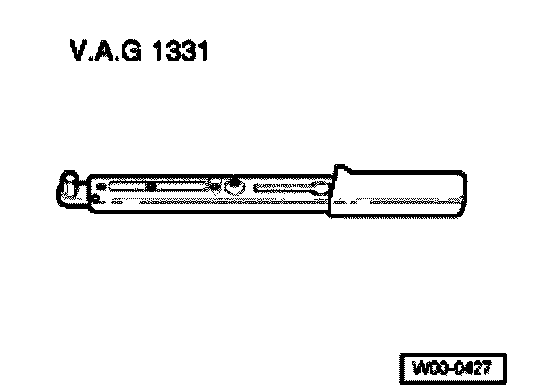

VAG 1331 Torque wrench:

Removing
- Turn clutch pedal switch 45 to left and pull out from support.
- Remove over-center spring.
- Separate clutch pedal from clutch master cylinder and push operating rod toward engine compartment onto stop.

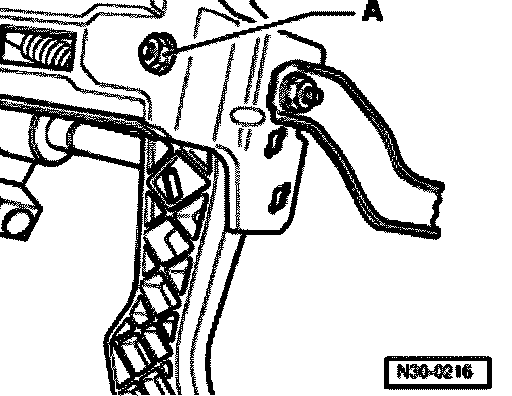

- Remove nut -A-.
- Pull bolt out until clutch pedal can be removed.

Installing
Installation is performed in the reverse sequence. Note the following:

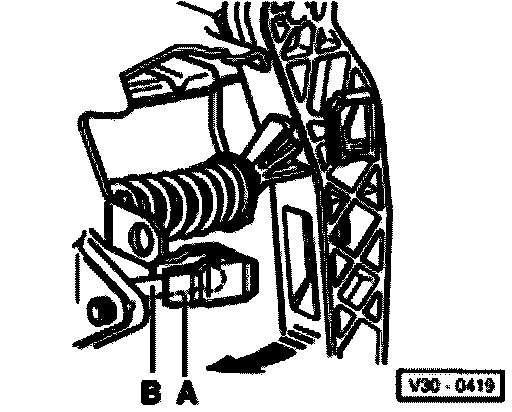

The bearing bracket -A- must be installed to the clutch master cylinder operating rod -B-.
- Push clutch pedal in direction of arrow to engage it. Make sure it is secure.
- Install over center spring.
- Place clutch pedal switch in mounting hole and turn 45 to the right.
