Clutch Mechanism, Repairing

Clutch mechanism, repairing, 02M, 5 and 6 Spd. M/T

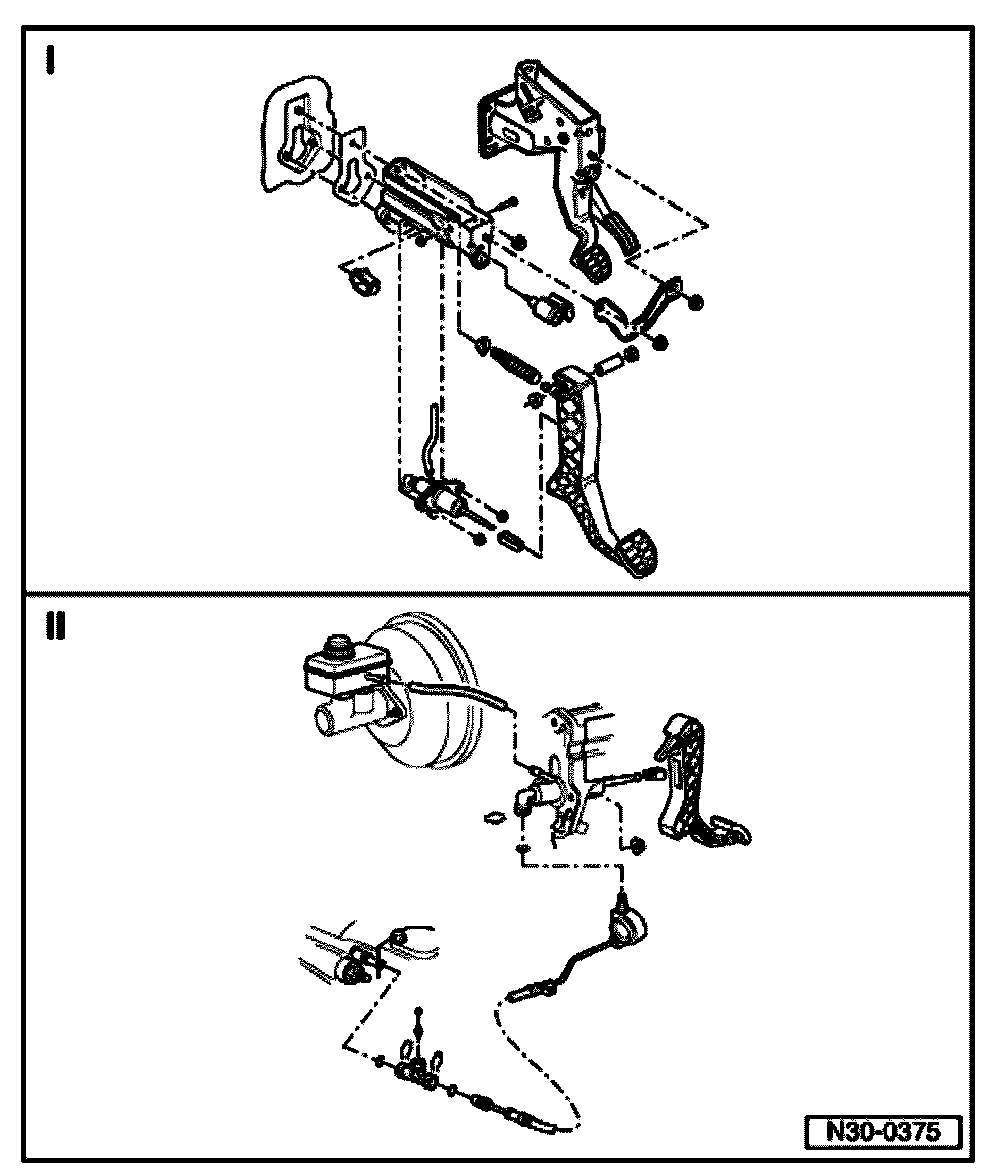

I -Assembly overview- pedal
II -Assembly overview- hydraulics

Note:
^ Disconnect the battery ground strap.
^ For vehicles with a coded radio, obtain the radio code.
^ Lubricate all bearings and contact surfaces with poly resin grease Part No. G 000 450 02.
