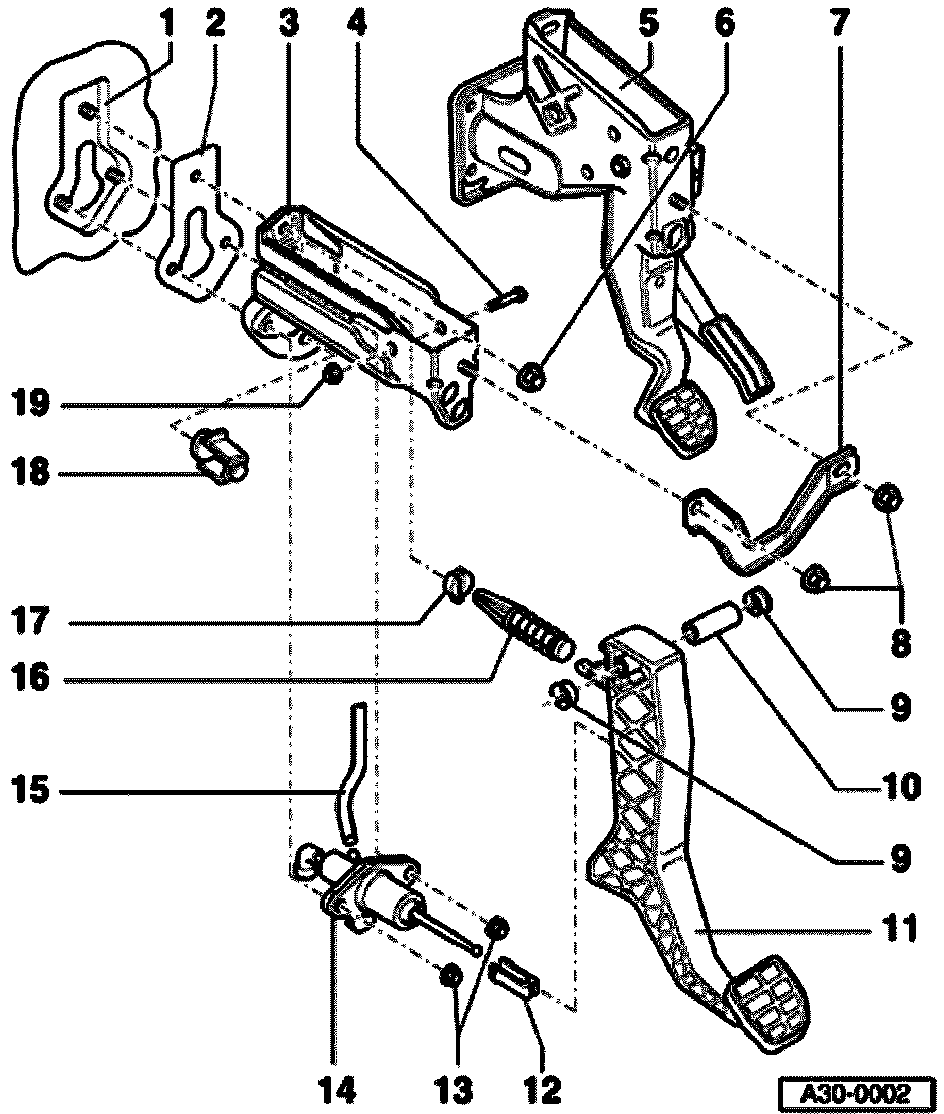

Pedal Cluster, Assembly Overview

Pedal cluster, assembly overview, 02J, 5 Spd. M/T





1 - Bulkhead
^ With mounting for mounting bracket and master cylinder

2 - Seal
^ Always replace

3 - Mounting bracket
^ For mounting clutch pedal

4 - Bolt
5 - Mounting bracket
^ For mounting accelerator pedal and brake pedal

6 - Self-locking hex nut, 25 Nm
^ Always replace

7 - Connecting plate
8 - Self-locking hex nut, 25 Nm
^ Always replace

9 - Mounting bushing
10 - Fulcrum pin

11 - Clutch pedal
12 - Retainer

13 - Self-locking hex nut, 25 Nm
^ Always replace

14 - Master cylinder
15 - Supply hose
16 - Over-center spring

17 - Over-center spring mounting
^ Install in mounting bracket

18 - Stop
^ For clutch pedal
^ Installation position

19 - Self-locking hex nut, 25 Nm
^ Always replace
