Vehicle Diagnosis, Testing and Information System Vas 5051, Connecting

Vehicle diagnosis, testing and information system VAS 5051, connecting, 09A, 5 Spd. A/T
All functions which could previously be performed with V.A.G 1551/1552 can also be performed with the new tester VAS 5051 in the vehicle self-diagnosis operating mode:

Special tools and equipment

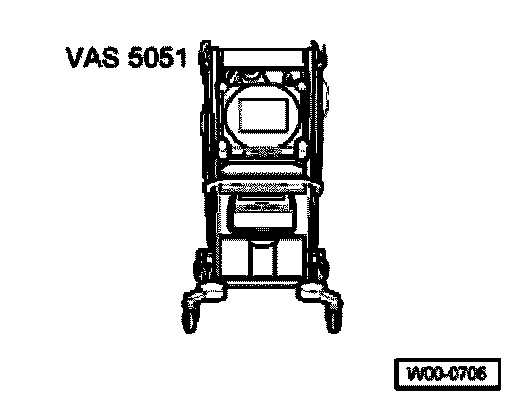

^ VAS 5051 Vehicle diagnosis, testing and information system

Additional information
^ Self-study program

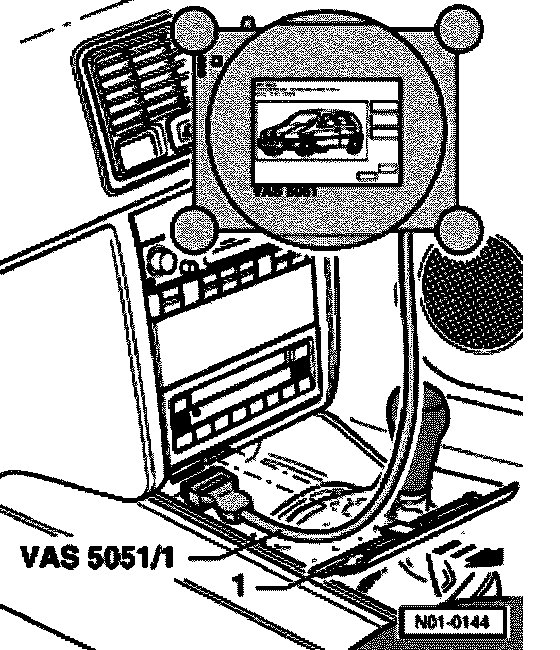

- Pull cover -1- off in direction of arrow.
- With ignition switched off, connect tester VAS 5051 to diagnosis connection using diagnosis cable VAS 5051/1 or VAS 5051/3.

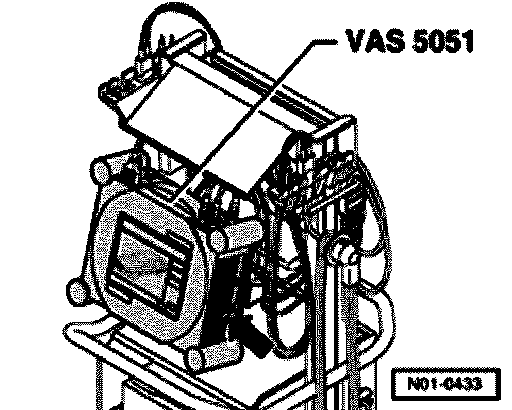

- Switch on tester (arrow).

The tester requires approximately 5 minutes to warm up.
- Switch ignition on.
- Select zone "Vehicle self-diagnosis" on touch screen.

The display will now provide a guide to further selections.
